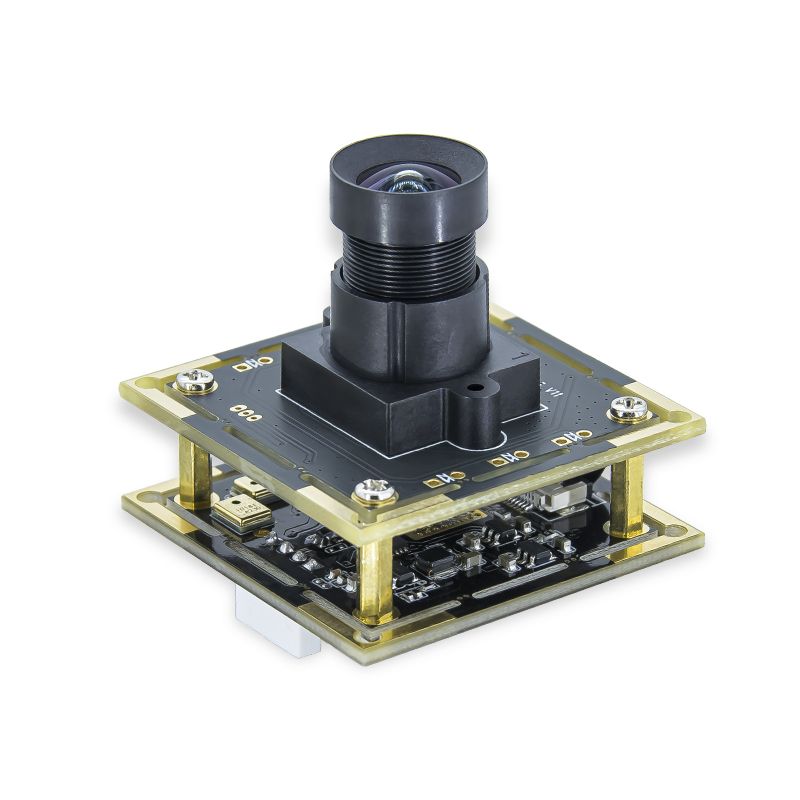

12MP Sony IMX577 USB2.0 Camera Module With Case
1. Standard industrial camera 38, 32mm board structure
2. There is an extended light board (capable of white light and infrared light)
3. 30 frames per second with 4K resolution
4. Built in dual digital microphone
5. IMX577-1/2.3 large pixel camera focuses on the high-end market (large screen machines, live streaming machines), with good performance
12MP Sony IMX577 USB2.0 Camera Module With Case
2. Product size: 38 * 38 * 36 ± 0.5 MM
3. Product chip: IMX577 (1/2.3 '')
4. Maximum resolution, format, frame rate: 3840 * 3104 MJPEG 15FPS
3840*2160 MJPEG 30FPS
5. Maximum viewing angle: 85 ° without distortion
6. Built in dual digital silicon microphone
7. Sample testing line 4P-2.0MM-50CM
Product Specification
Module No. | HBVCAM-12M2353 V11 |
Module Size | 38mm × 38mm × 36.20mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX577 (1/2.3” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 3840*3040 |
Sensitivity | 50mV /（lux-sec） |
Pixel Size | 1.55µm x 1.55µm |
Maximum Image Transfer Rate | MJPEG 1920x1080 120FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2160 30FPS / YUY2 3264x2160 1FPS MJPEG 3840x2880 20FPS / YUY2 3840x2880 1FPS MJPEG 3840x3040 20FPS / YUY2 3840x3040 1FPS
|
S/N Ratio | 40db |
Max Dynamic Range | 83db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 6G |
F/No | 2.2 |
EFL | 2.8 mm |
FOV | 85° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
