Product Features:
1. Standard industrial small camera housing 28X28mm structural hole position
2. Advantages: JPEG high frame 720P, 960P-60 frames
3. Reserved dual sub interface, rotatable 90 degree installation
4. No microphone, no reserved port for lighting

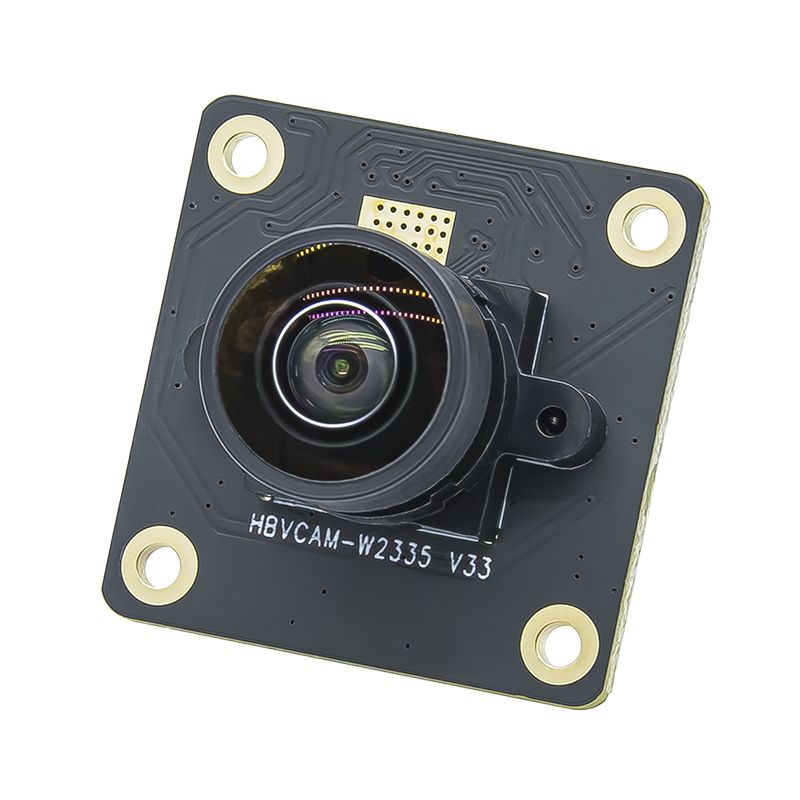

1MP H68 960P 60FPS HD USB Camera Module For Industrial Device
1. Product size: 28 * 28 * 9.2 ± 0.3 MM
2. Product chip: H68 (1/3 '')
3. Maximum resolution, format, and frame rate: 1280 * 960 MJPEG 60FPS
4. Maximum viewing angle: 68 ° without distortion
5. Sample matching test line 4P-1.25MM-50CM
JX-H68 is an HD CMOS image sensor designed and fabricated with SOI’s 3.75um pixel technology. It can deliver images at 60fps in 960P mode and 30fps in HDR mode. The JX-H68 consists of a 1288 x 968 active pixel sensor (APS) array with on-chip 10-bit ADC, programmable gain control (PGA), and correlated double sampling (CDS) to significantly reduce fixed pattern noise (FPN). The sensor also has many standard programmable and automatic functions. It has both the industry compliant DVP parallel and MIPI CSI2 1 lane serial interfaces. The external host controller can access this device through a standard serial interface. It is available in wafer-level packaged CSP.
Product Specification:
Module No. | HBVCAM-W2335 V33 |
Module Size | 28mm × 28mm × 9.2mm±0.3MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 750 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | JX-H68 (1/3” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 600mV /（lux-sec） |
Pixel Size | 3.75µm x 3.75µm |
Maximum Image Transfer Rate | MJPEG 630x360 60FPS / YUY2 630x360 30FPS MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 15FPS MJPEG 1024x768 60FPS / YUY2 1024x768 5FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 37.2db |
Max Dynamic Range | 71db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 3P+IR |
F/No | 2.0 |
EFL | 4.2 mm |
FOV | 68° |
TV Distortion | <1.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
