AR0144 1MP Global Shutter Camera Module
The standard 28X28MM structure is versatile (available with a PC camera)
high cost effective than 1080P camera

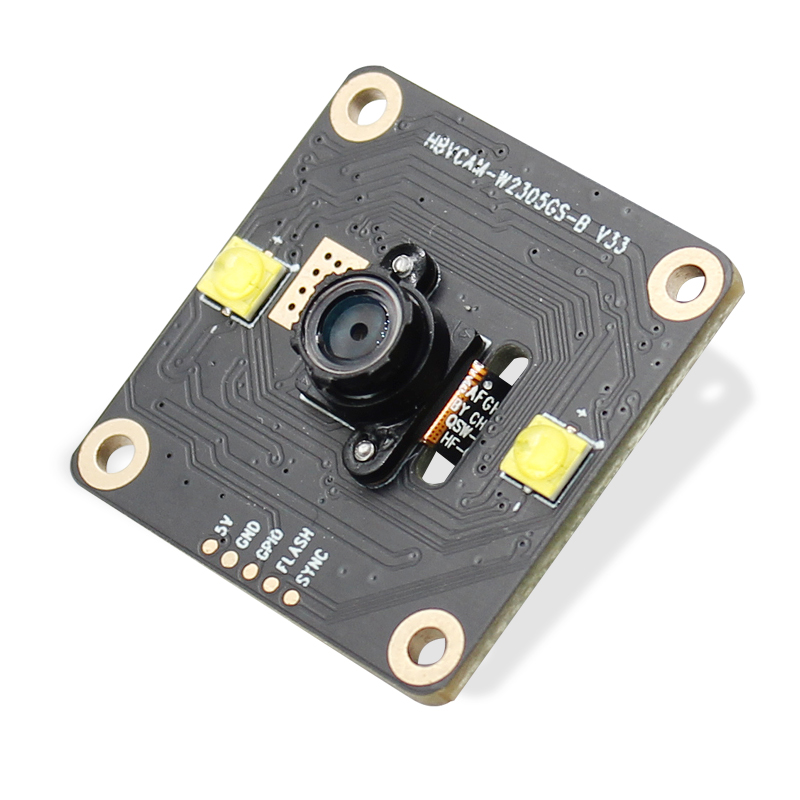

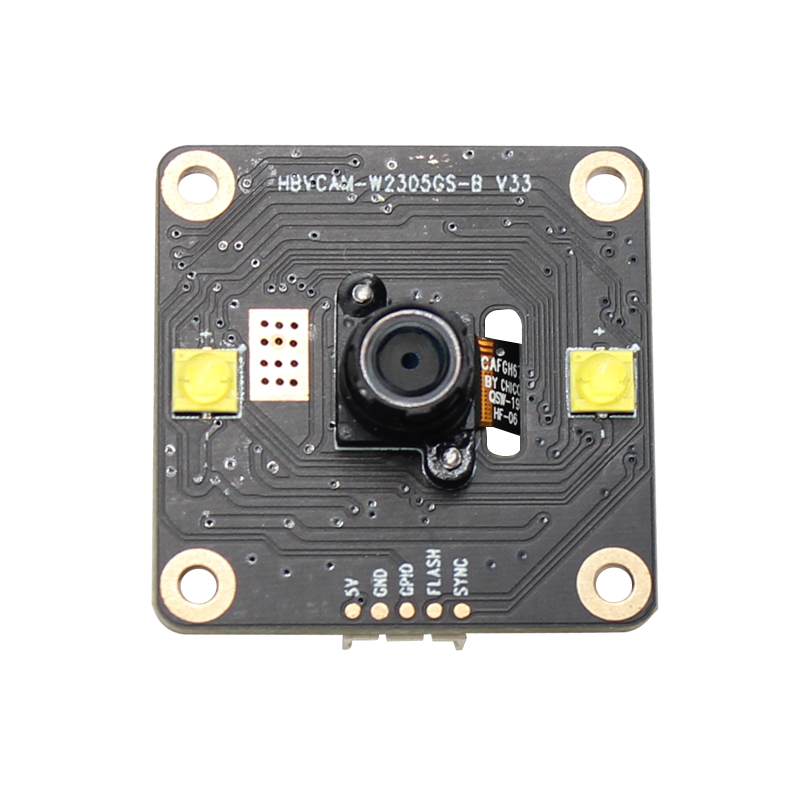

AR0144 1MP Global Shutter Camera Module
AR0144 Sensor :
AR0144 Sensor :The AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V. It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes. It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes. It is programmable through a simple two-wire serial interface. The AR0144 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.
· Best Global Shutter Efficiency
· Low Dark Current/Hot Pixels
· High Linear Full Well
· Low Operational Power
· Small Form Factor
Specification
Module No. | HBVCAM-W2305GS-B V33 |
Module Size | 28mm × 28mm × 6.85mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 610 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | AR0144 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*800 |
Sensitivity | 3.6V /（lux-sec） |
Pixel Size | 3.0µm x 3.0µm |
Maximum Image Transfer Rate |
MJPEG 680x480 60FPS / YUY2 680x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 10FPS MJPEG 1280x720 60FPS / YUY2 1280x720 30FPS MJPEG 1280x800 60FPS / YUY2 1280x480 30FPS
|
S/N Ratio | 38db |
Max Dynamic Range | 63.9db |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 4P |
F/No | 2.2 |
EFL | 2.8mm |
FOV | 93° |
TV Distortion | <1% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
Are you manufacturer or Trader?
We are the manufacturer, our factory have 1000 square meter, we have 13years experience for the camera module, we can supply OEM and ODM service.
Do you have SDK for the camera?
this camera is free driver, if you need after-sales service, please contact us.
What is the warranty time?
The warranty time usually 12 month, but we can help you to repair the product all the time.
