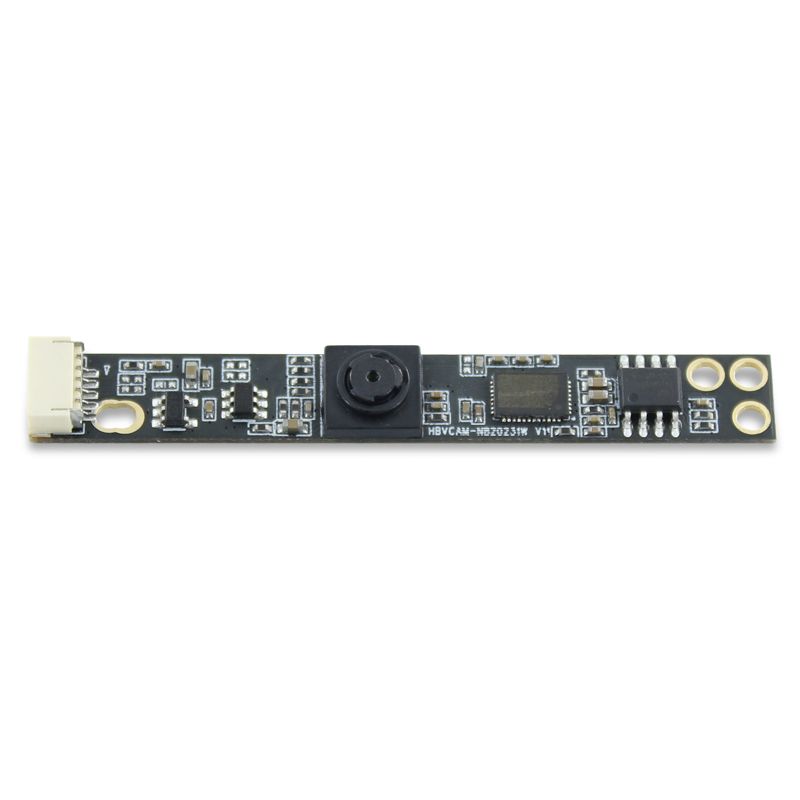

HBVCAM OV9726 1MP OTG Free Driver Laptop Computer Camera Module with Ultra thin Lens

* Size :60mm × 8mm × 4mm±0.2MM/ 60mm × 8mm × 2.85mm±0.2MM(other one with lower height)

* Sensor：OV9726(1/6.5'')

* Maximum Resolution ：1280*720 MJPEG 30FPS

* Fov：66° （Lens can be adjustable,different Lens,FOV different)

* Interface:USB2.0

* Focus:fixed

* Output Formats:YUY2

* Supply voltage:DC 5V±5%

* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Specifications

Drawings

When selecting a camera module lens, there are several factors to consider:

1. Focal length: The focal length of the lens determines the angle of view and the magnification of the image. A shorter focal length will result in a wider angle of view, while a longer focal length will result in a narrower angle of view.

2. Aperture: The aperture of the lens controls the amount of light that enters the camera. A larger aperture (lower f-number) allows more light to enter, resulting in better performance in low-light conditions.

3. Optical quality: The optical quality of the lens can have a significant impact on the overall image quality. Look for lenses with high-quality glass and coatings to minimize distortion, chromatic aberration, and other optical issues.

4. Compatibility: Ensure that the lens is compatible with the camera module and any other components in your system.

5. Form factor and size: Consider the physical dimensions of the lens to ensure it can fit within your design requirements.

6. Cost: Evaluate the cost of the lens in comparison to its features and performance to ensure it meets your budget requirements.

By considering these factors, you can select a camera module lens that will provide the necessary image quality and performance for your application.
