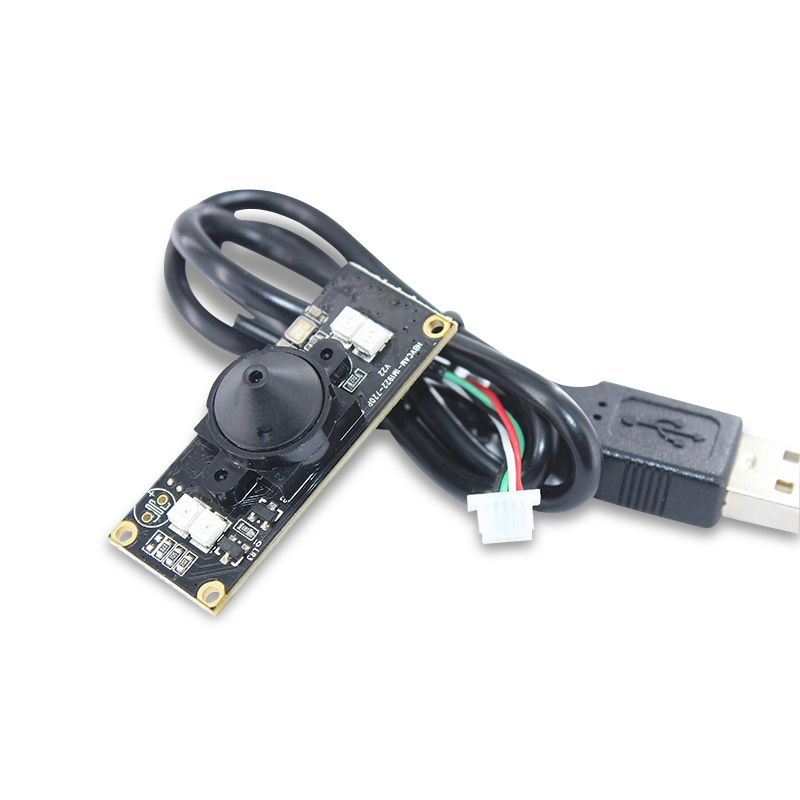

HBVCAM 1MP OV9712 HD Night Vision Camera Module with Pin hole Lens
HBVCAM 1MP OV9712 HD Night Vision Camera Module with Pin hole Lens
* Size:42mm × 16mm × 13.1mm±0.5MM
* Sensor：OV9712(1/4'')
* Maximum Resolution：1280*800 30fps
* Fov：30°（ Lens can be adjustable,different Lens,FOV different）
* Support pinhole night vision IR LED
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Module No. | HBVCAM-1M1922-720P V22 |
Module Size | 42mm × 16mm × 13.1mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1000 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9712 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*800 |
Sensitivity | 3300mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
S/N Ratio | 39 db |
Max Dynamic Range | 69 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 4P |
F/No | 2.4 |
EFL | 3.5 mm |
FOV | 56° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
