Product Features:
1. Standard advertising machine, all-in-one machine structural standard size: 60mm * 10mm
2. Large pixel 1/2.7-1080P, good effect, good low illumination, with software micro dynamic effect
3. Multiple lens can be choosed
4. Can achieve 60 frames
5. With built-in digital microphone

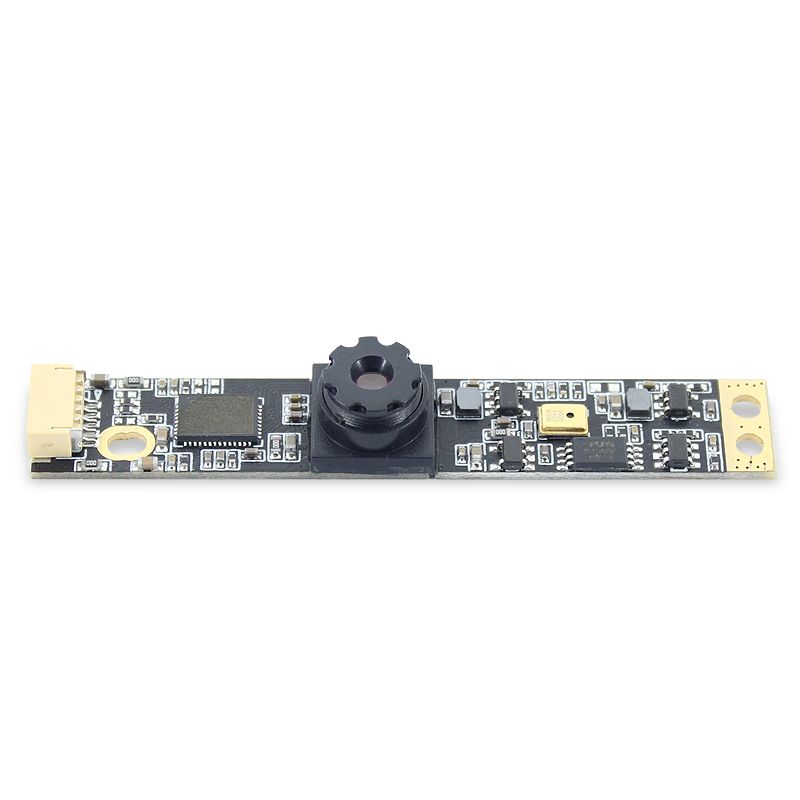

2 million pixel high-definition 1080p advertising machine, all-in-one portrait shooting equipment, embedded with microphone and built-in camera module
PS5260 Sensor: The PS5260 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p)
pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the
excellent image quality and single-shot high dynamic range synthesized image output. PS5260 outputs
12bit/10-bit compressed RGB raw data through a parallel digital video port or via serial MIPI interface through
one-lane or dual-lane transmission. It is available in CSP package.
The PS5260 can be programmed to set the exposure time for different luminance condition via I2CTM serial
control bus. By programming the internal register set, it performs on-chip black level correction and high
temperature image quality control.
Applications
l Surveillance HD-CCTV Camera
l Surveillance IP Camera
l Car Video Recorder
l Video Door Phone
Product Specification:
Module No. | HBVCAM-F2206HD V22 |
Module Size | 60mm × 10mm × 7.5mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 470mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | PS5260 (1/2.7” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 4700mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 848x480 30FPS / YUY2 848x480 15FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS |
S/N Ratio | 46 db |
Max Dynamic Range | 83 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 5P |
F/No | 2.2 |
EFL | 3.43mm |
FOV | 75° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
