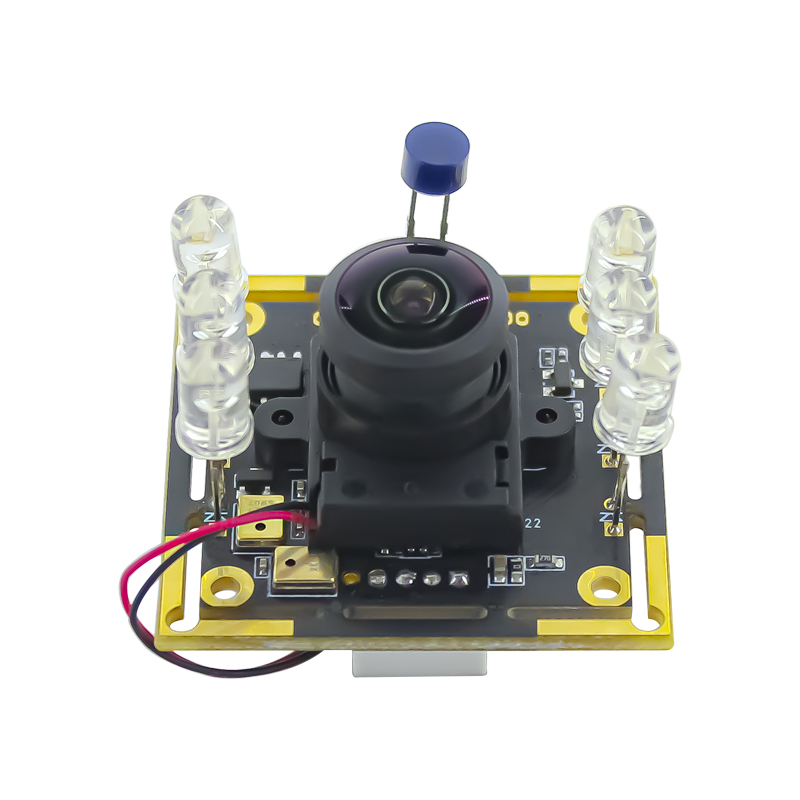

2MP 1080P Automatic IR CUT Switch camera module for IPC, advertising machine, equipment for day/Night
1, standard industrial camera structur: 38*38mm 32mm* 32mm
2, with white night mode but change-color during the day at night black and white, photosensitive control
2MP 1080P Automatic IR CUT Switch camera module for IPC, advertising machine, equipment for day/Night
2, product size: 38 * 38 * 22MM
3, product chip: PS5260(1/2.7”)
4, maximum resolution, format, frame rate: 1920 * 1080mjpeg 30FPS
5, maximum angle of view: 100 °
6, support IR-CUT-850/940nm Infrared
7, with dual digital microphone
8, sample with test line 4p-2.0 MM-40CM
Product Specification:
Module No. | HBVCAM-F2132HDR V22 |
Module Size | 38mm × 38mm × 24.60mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 800mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | PS5260 (1/2.7” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 4700mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 46 db |
Max Dynamic Range | 83 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 2G2P |
F/No | 2.4 |
EFL | 3.6mm |
FOV | 94° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
