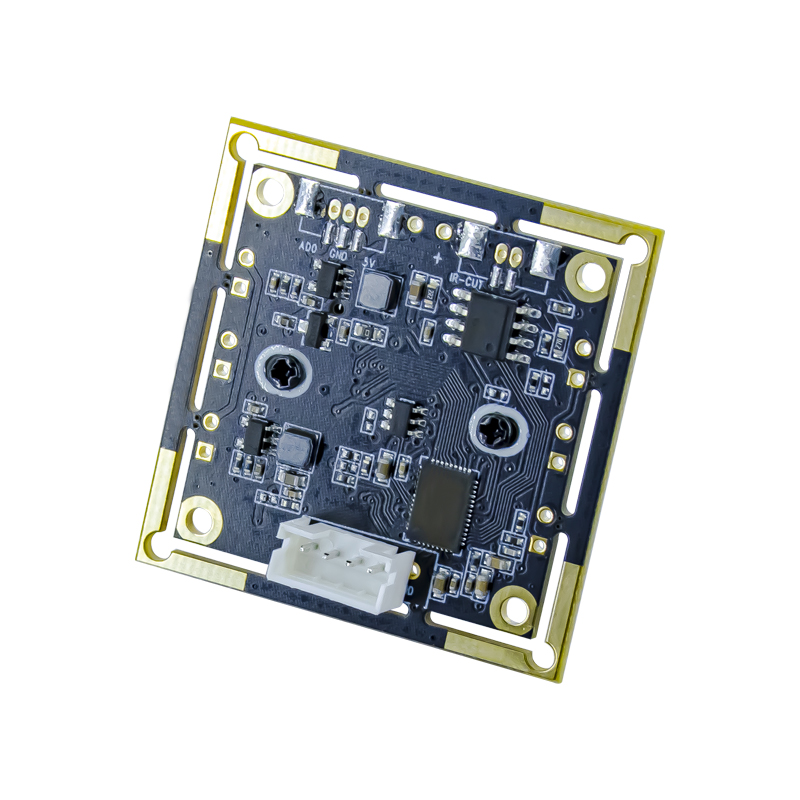

2MP 1080P WDR Camera Module For Advertising Machine
Standard industrial camera structure: 38,32mm
backlight portrait, recognition class effect is better
3. Lens selection range
4. can add welding 6 plug-in lamp (can be infrared white light) can be made to turn on and off light-sensitive control
2MP 1080P WDR Camera Module For Advertising Machine
2, product size:38*38*24±0.5 MM
3, product chip: PS5260(12.7”)
4, MAX resolution, format, frame rate: 1920 * 1080 mjpeg 30FPS
5, Max angle of view: 145 °
6, with dual digital microphone
7, sample usb cable :4p-2.0 MM-40CM
The PS5260 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p)
pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the
excellent image quality and single-shot high dynamic range synthesized image output. PS5260 outputs
12bit/10-bit compressed RGB raw data through a parallel digital video port or via serial MIPI interface through
one-lane or dual-lane transmission. It is available in CSP package.
The PS5260 can be programmed to set the exposure time for different luminance condition via I2CTM serial
control bus. By programming the internal register set, it performs on-chip black level correction and high
temperature image quality control.
Product Specification:
Module No. | HBVCAM-F2132HDR V22 |
Module Size | 38mm × 38mm × 17.50mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 800mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | PS5260 (1/2.7” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 4700mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 46 db |
Max Dynamic Range | 83 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 2G2P |
F/No | 2.4 |
EFL | 3.0mm |
FOV | 100° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
