Product Features:
1. Standard advertising machine integrated machine structure: 60mm * 9mm
2. Large pixel size of 1/2.7-1080P, good effect, good low illumination, realistic hardware wide dynamic 85dB
3. Multiple FOV Lens can be choosed
4. Can achieve 60 frames, with no wide dynamic effect at 60 frames
5. Advantages: Standard advertising machine width 9mm

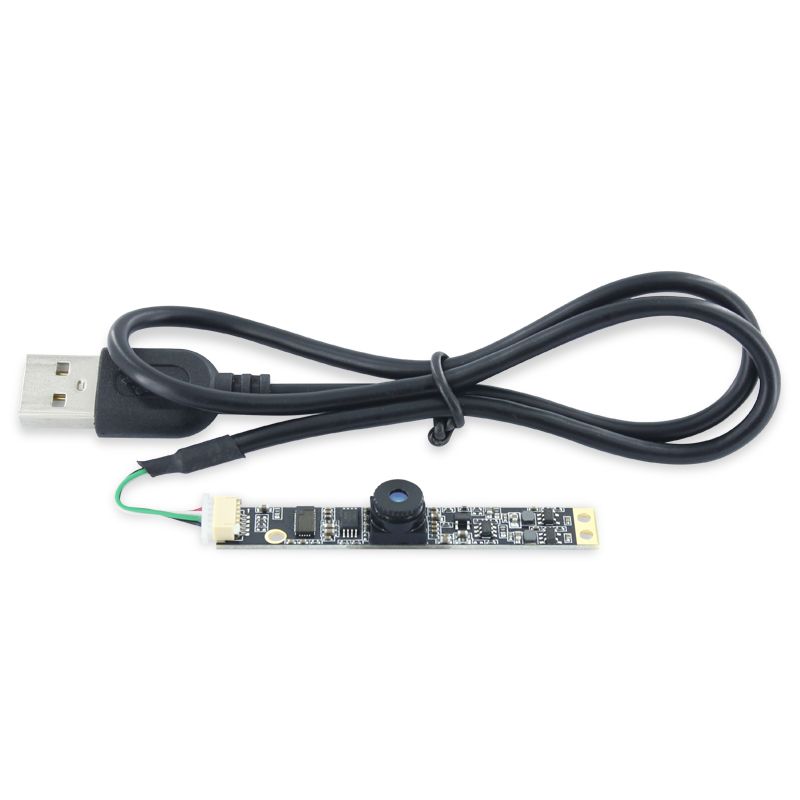

2MP 1080P Wide Dynamic USB Camera Module With Low light Effect
PS5268 Sensor : PS5268 Full-HD 1080p HDR CMOS IMAGE SENSOR: The PS5268 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p) pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the excellent image quality and single-shot high dynamic range synthesized image output. PS5268 outputs linear 14-bit or local tone mapped 12-bit raw data through MIPI CSI-2 interface with very low power consumption. It is available in CSP package.The PS5268 can be programmed to set the exposure time for different luminance condition via I2CTM serial control bus. Embedded HDR image synthesis with local tone mapping to deliver high performance, cost effective and time to market for high resolution HDR application. By programming the internal register set, it performs on-chip black level correction and high temperature image quality control.
Features
§ Image size : 1928 x 1088 pixels with
Bayer-RGB color filter array and
micro-lens
§ Output format:
- 14bit Linear HDR-RAW RGB
- 12bit HDR + Local Tone Mapped
RAW RGB
- 10bit Linear RAW RGB
§ Output interface
- 12bit parallel DVP output
- 2-lane MIPI output (up to 800Mbps
per lane)
§ I2CTM Interface with two kinds of
Slave_ID
§ Low Power consumption
§ High sensitivity
§ Support on-chip HDR synthesis
§ Image sensor processor functions :
- Automatic black-level calibration
- Embedded Local Tone Mapping
- Black sun cancellation
§ Support sensor frame synchronization
§ On-chip PLL
(input_clock / PLL_m >= 1MHz)
§ On-chip column A/D converter
§ On-chip manual analog gain control
§ Continuous variable frame time &
exposure time
§ Support WOI and subsampling
§ Support dummy line & pixel timing
§ Support output Hsync at Vsync
§ Support 1.7V~3.3V I/O
§ Support Fast Auto Exposure (FAE) function
Applications
l Surveillance HD-CCTV Camera
l Surveillance IP Camera
l Car Video Recorder
l Video Door Phone
Product Specification:
Module No. | HBVCAM-F2110HDR V22 |
Module Size | 62mm × 9mm × 16.5mm±0.3MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 400mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | PS5268 (1/2.7” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 5800mV /（lux-sec） |
Pixel Size | 3µm x 3µm |

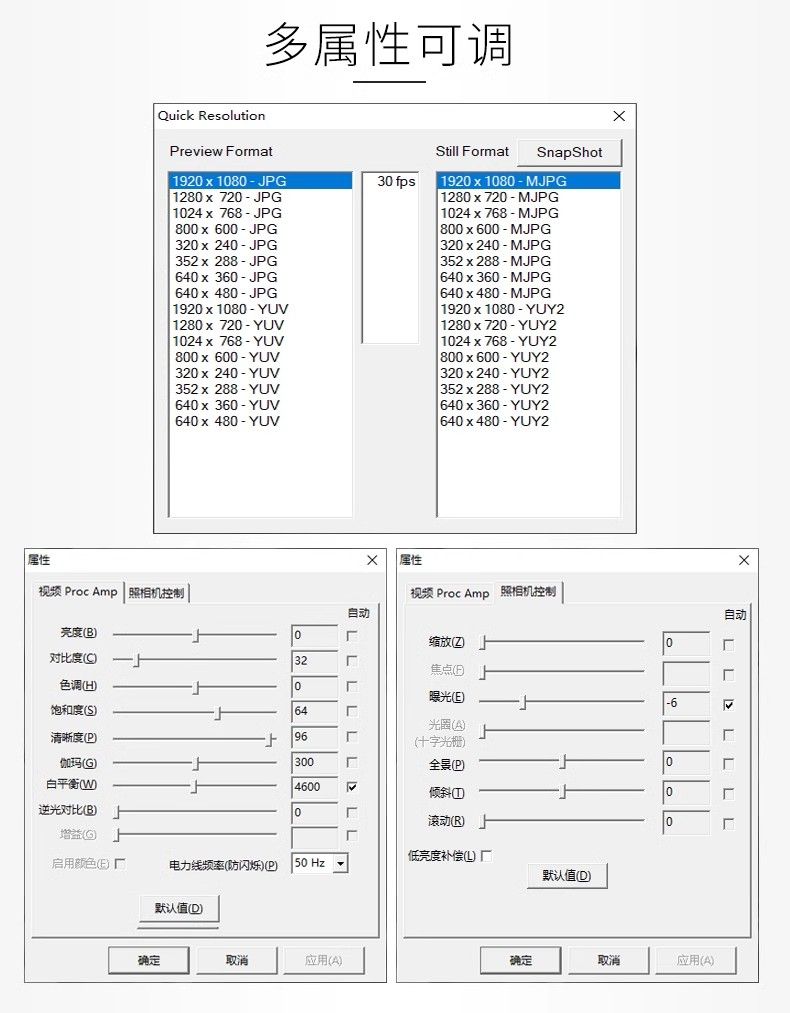

Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 41 db |
Max Dynamic Range | 85 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 5G |
F/No | 2.4 |
EFL | 3.0mm |
FOV | 100° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Parameter & Drawing:
Does the camera module can be used outdoor?
Yes, it is the WDR camera module, the image is clear even in the strong light enviroment.
Does the camera module need drivers for Window ,Linux and Android system?
No, this camera is plug and play camera, it is free driver for Window ,Linux and Android system.
3. What is the difference between Wide Dynamic camera and normal camera module?
Wide dynamic cameras have higher image clarity and dynamic range, which can better adapt to changes in lighting environment and present a wider range of scenes. However, ordinary cameras are suitable for shooting in relatively stable lighting environments, with a narrow adaptation range.
