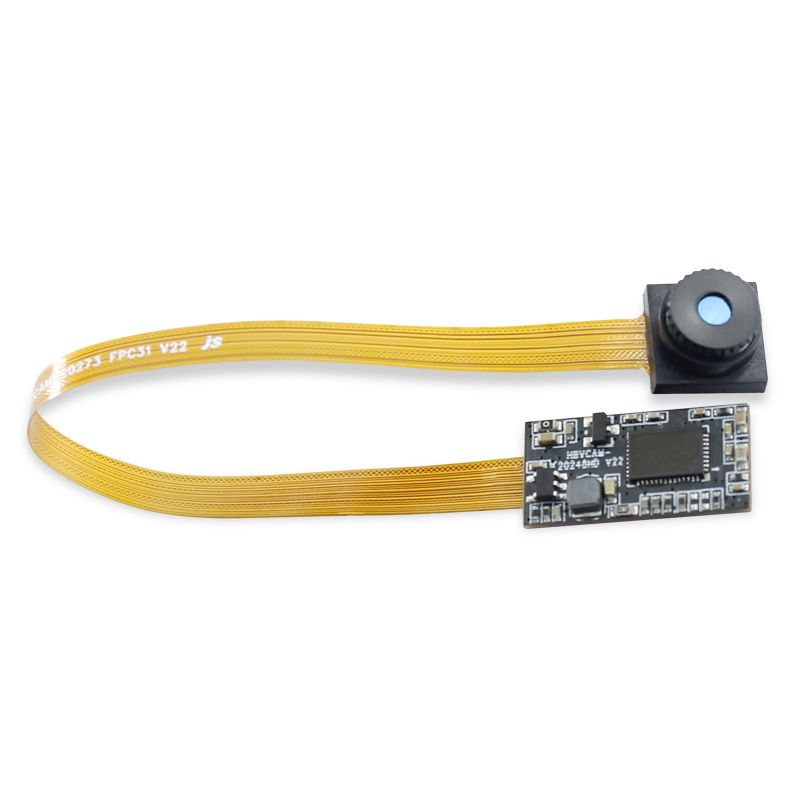

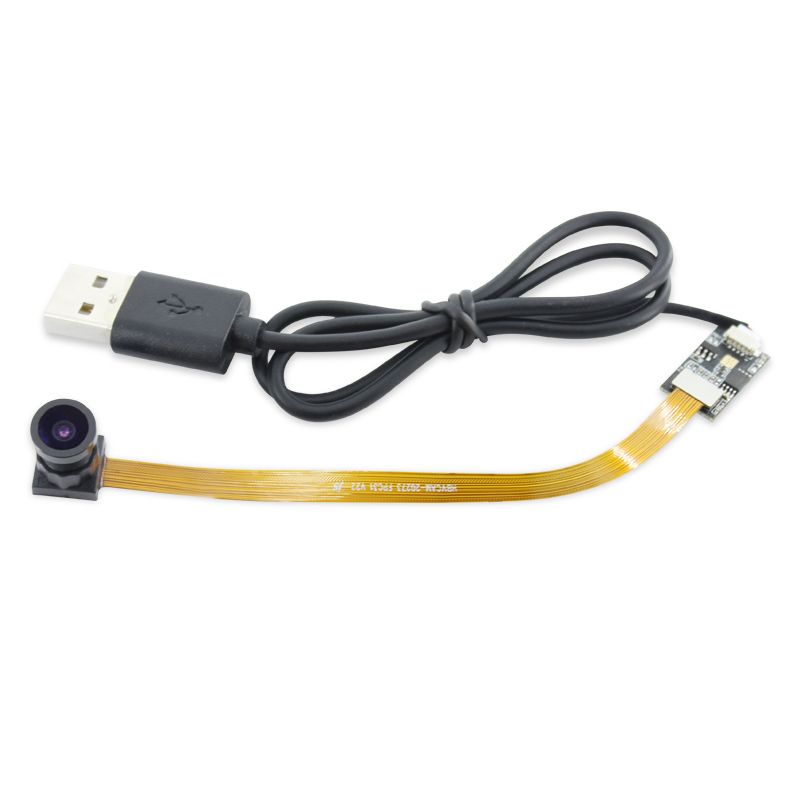

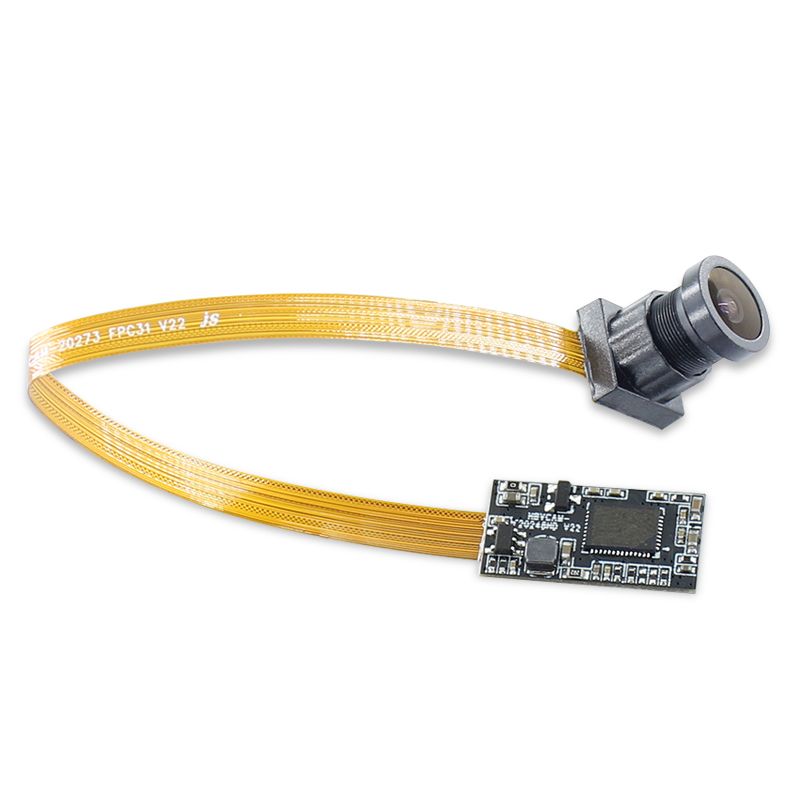

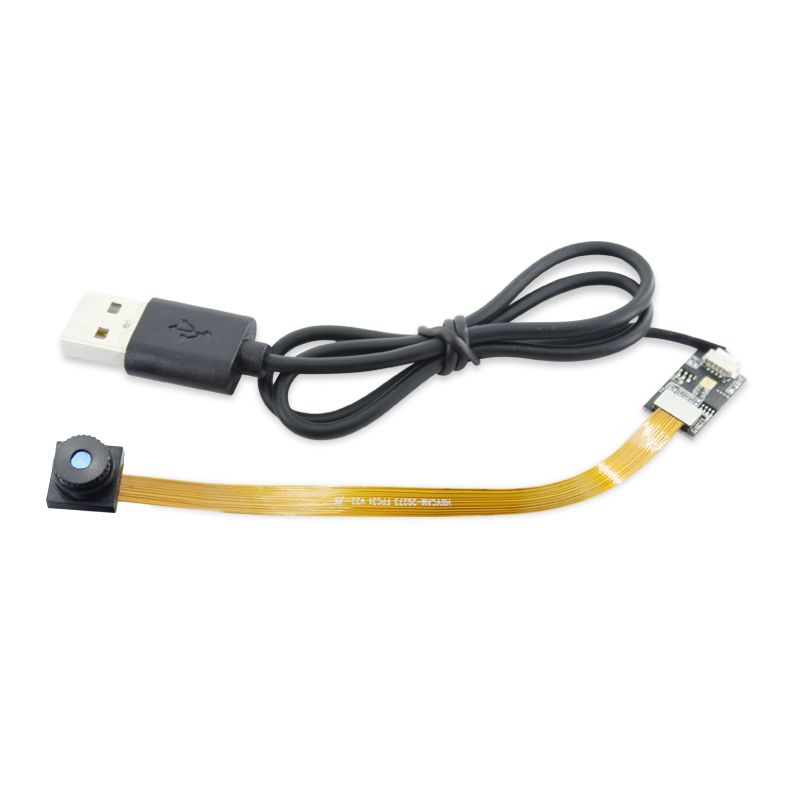

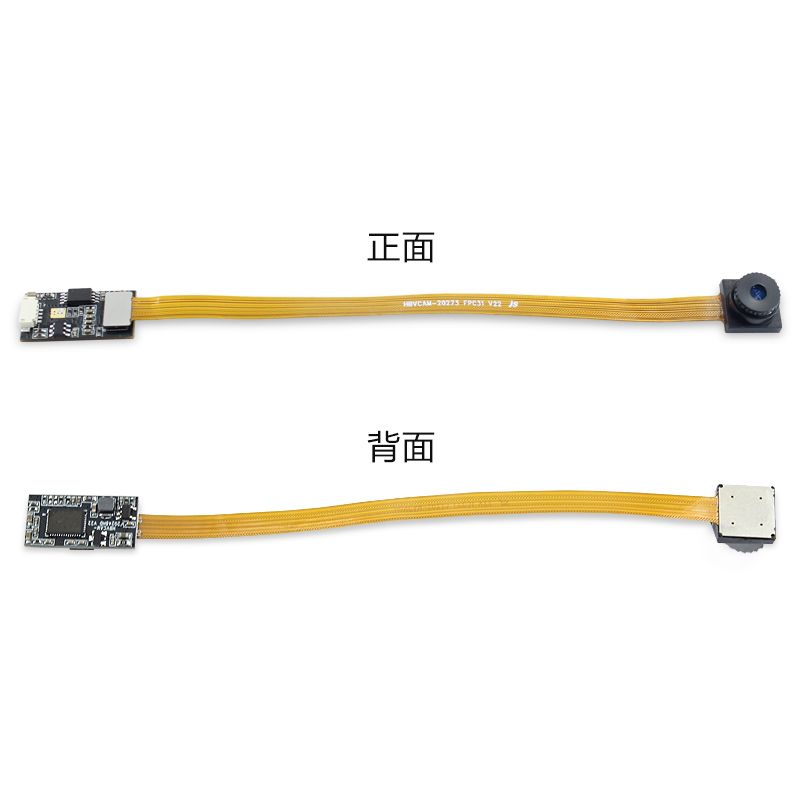

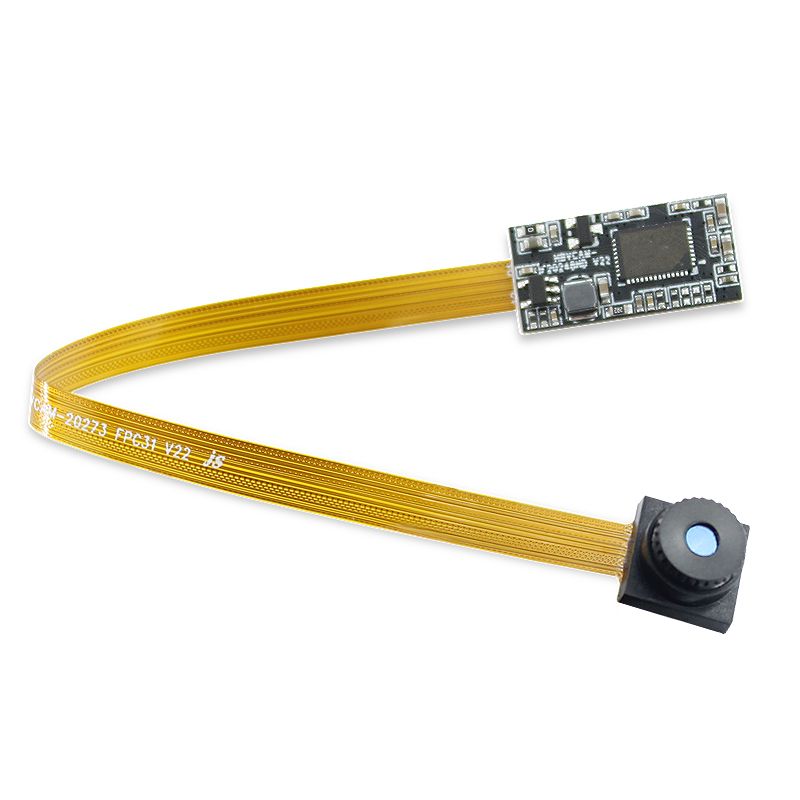

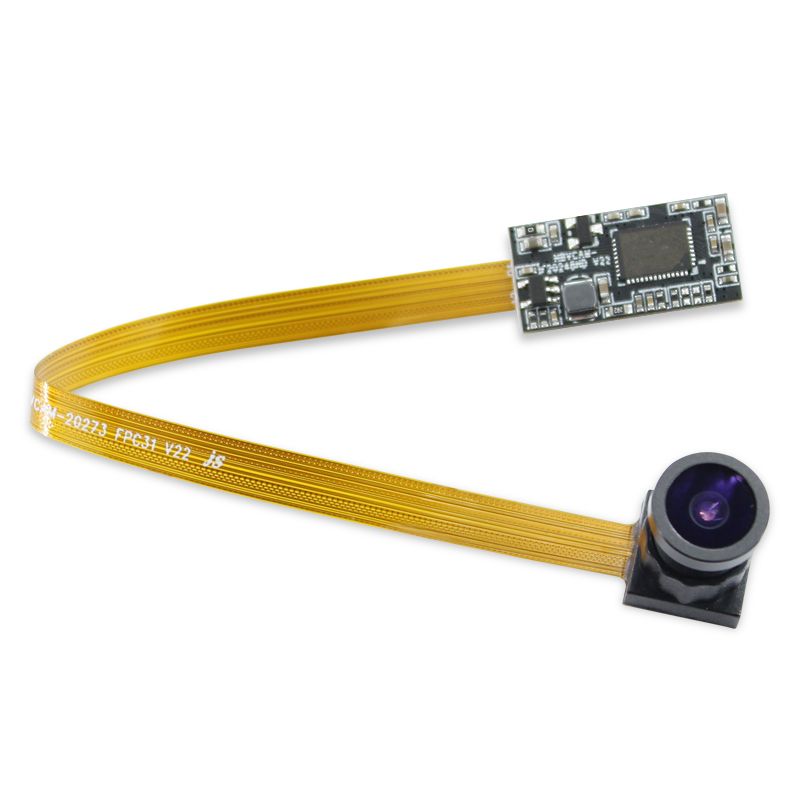

2MP 1080P HD FPC+PCB separate camera module
1. Soft and hard board split flexible structure, large image surface, high-definition effect, ultra small volume, width 10mm
2. The head size is 10 * 10mm, and the soft board part can be customized according to needs
3. Several specifications of lenses isoptional
4. Bottom plate with positioning holes (updated) V44 version
2MP 1080P HD FPC+PCB separate camera module
OV2735 Sensor: OmniVision's OV2735 is a high-performance image sensor that brings 1080p high-definition (HD) video
capture to mainstream security and surveillance cameras. The OV2735 offers technical advancements such as support for low-power mode, stable image quality within operating temperatures ranging from 0C to 60C, and dramatically reduced powerconsumption. As such, the OV2735 offers security and surveillance camera OEMs an easy upgrade camera solution in the popular 1/2.7-inch optical format. Built on OmniVision's proven OmniPixel3-HS pixel technology, the OV2735 captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps. The OV2735 also offers MIPI with parallel support and frame synchronization in a compact and power-efficient package.
Product Specification:
Module No. | HBVCAM-F20248HD V22 |
Module Size | 135mm × 10mm × 6.9mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 450mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV2735 (1/2.7” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 4600mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x180 30FPS / YUY2 320x180 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 424x240 30FPS / YUY2 424x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x400 30FPS / YUY2 640x400 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 848x480 30FPS / YUY2 848x480 10FPS MJPEG 960x540 30FPS / YUY2 960x540 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1280x800 30FPS / YUY2 1280x800 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
|
S/N Ratio | 38.9 db |
Max Dynamic Range | 62 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 6P |
F/No | 2.0 |
EFL | 4.2mm |
FOV | 76° |
TV Distortion | <1.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |

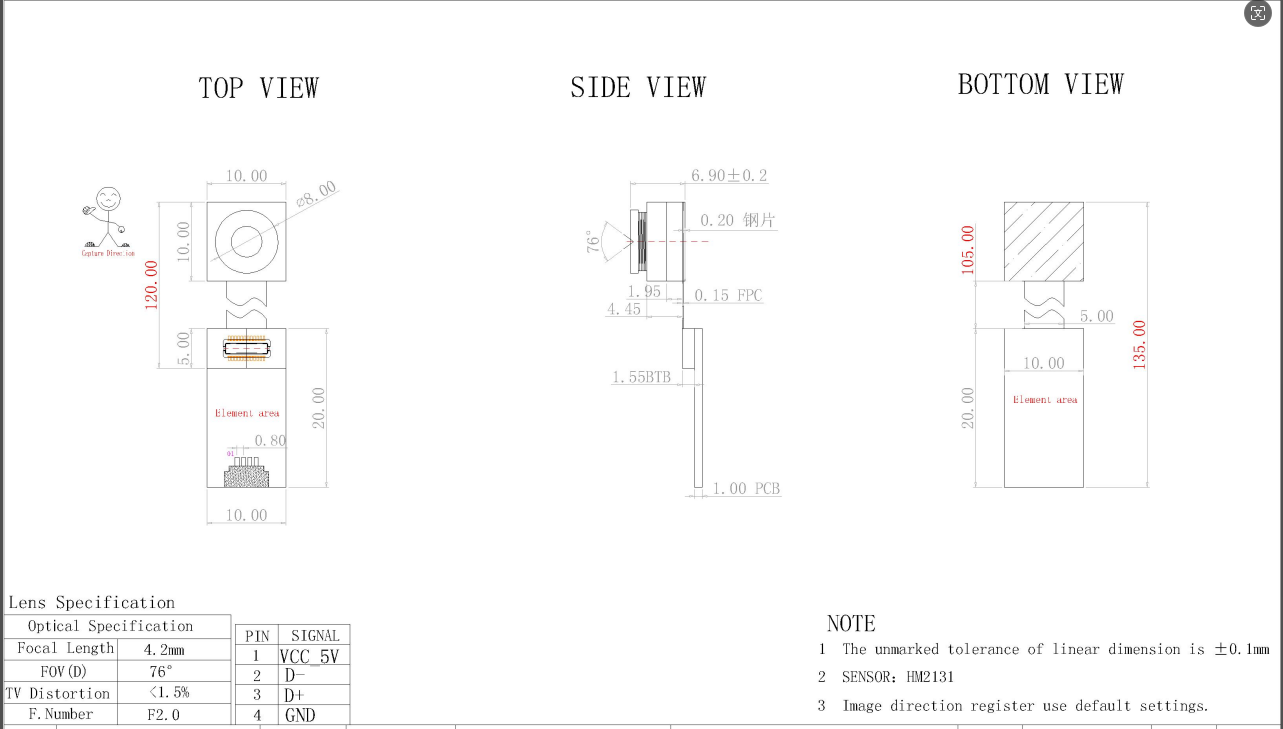

Product Drawings:
