Product Features:
1. Standard industrial camera board size:38mm*38mm 32mm*32mm
2. The effects of portrait, facial recognition, and recognition are relatively good
3. How many lenses are optional
4. 6 plug-in lights can be added and soldered (with infrared and white light), which can be made into an on/off image or photosensitive control. There is a power expansion port with an external light board
5. Built in dual digital microphone
6. Advantages: It can be used for automatic focusing of large motors

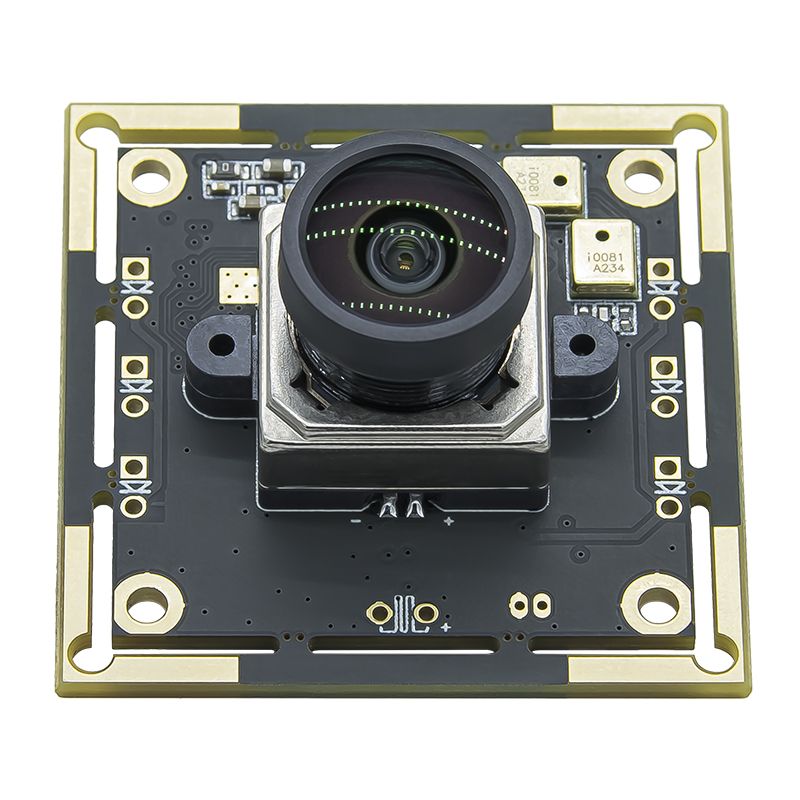

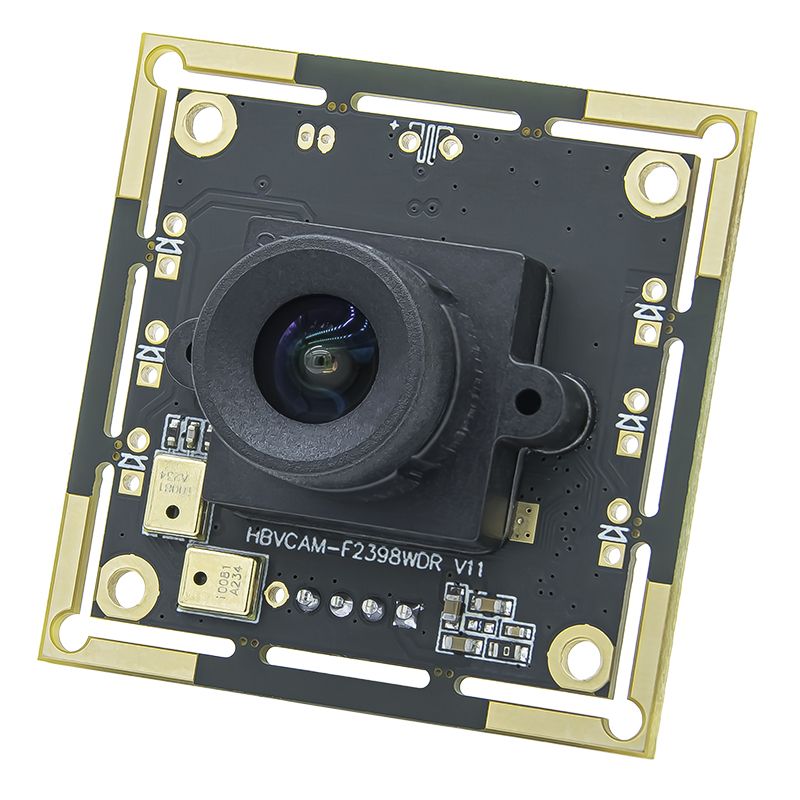

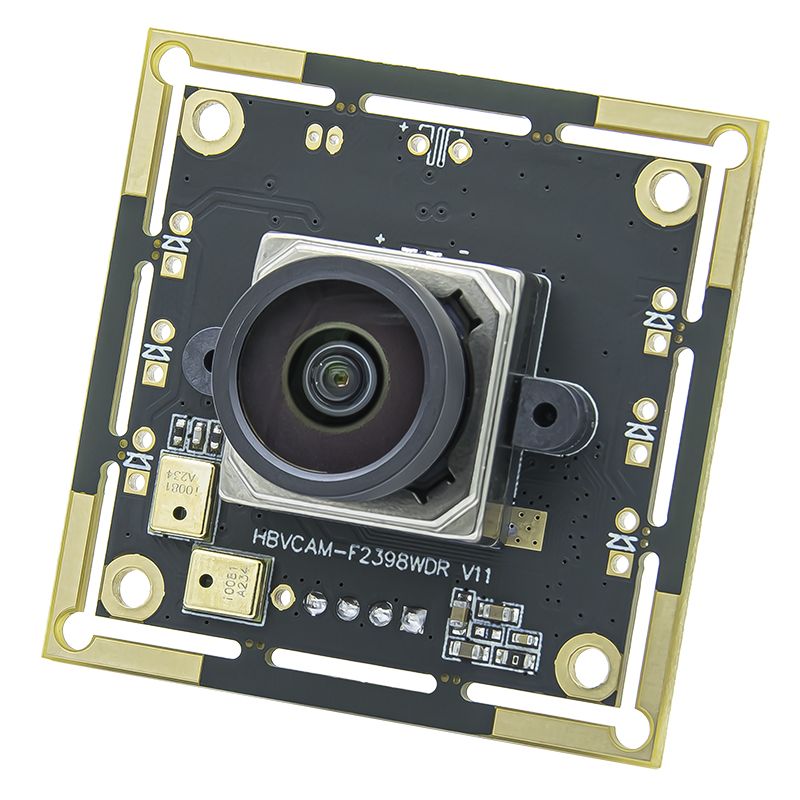

2MP High-definition 1080P Wide Dynamic Autofocus large motor Advertising machines Camera Module
1. Product size: 38 * 38 * 17.2 ± 0.3 MM
2. Product chip: AR0230 (1/2.7 '')
3. Maximum resolution, format, frame rate: 1920 * 1080 MJPEG 30FPS
4. Maximum viewing angle: 125 ° small distortion autofocus
5. Built in dual digital microphone
6. Sample matching test line 4P-2.0MM-50CM
ON Semiconductor's AR0230CS is a 1/2.7-inch CMOSdigital image sensor with an active-pixel array of1928Hx1088V. It captures images in either linear orhigh dynamic range modes, with a rolling-shutterreadout. It includes sophisticated camera functionssuch as in-pixel binning, windowing and both videoand single frame modes. It is designed for both lowlight and high dynamic range scene performance. It isprogrammable through a simple two-wire serial interface. The AR0230CS produces extraordinarily clear,sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, includingsurveillance and HD video.
Features
• Superior low-light performance
• Latest 3.0 m pixel with ON SemiconductorDR-Pix™ technology with Dual Conversion Gain
• Full HD support at up to 1080P 60 fps for superiorvideo performance
• Linear or high dynamic range capture
• Optional adaptive local tone mapping (ALTM)
• Pixel or Line interleaved T1/T2 output
• Support for external mechanical shutter
• On-chip phase-locked loop (PLL) oscillator
• Integrated position-based color and lens shadingcorrection
• Slave mode for precise frame-rate control
• Stereo/3D camera support
• Statistics engine
• Data interfaces: four-lane serial high-speed pixelinterface (HiSPi) differential signaling (SLVS andHiVCM), or parallel
• Auto black level calibration
• High-speed configurable context switching
• Temperature sensorApplications
• Video surveillance
• 1080p60 (Surveillance) video applications
• High dynamic range imaging
