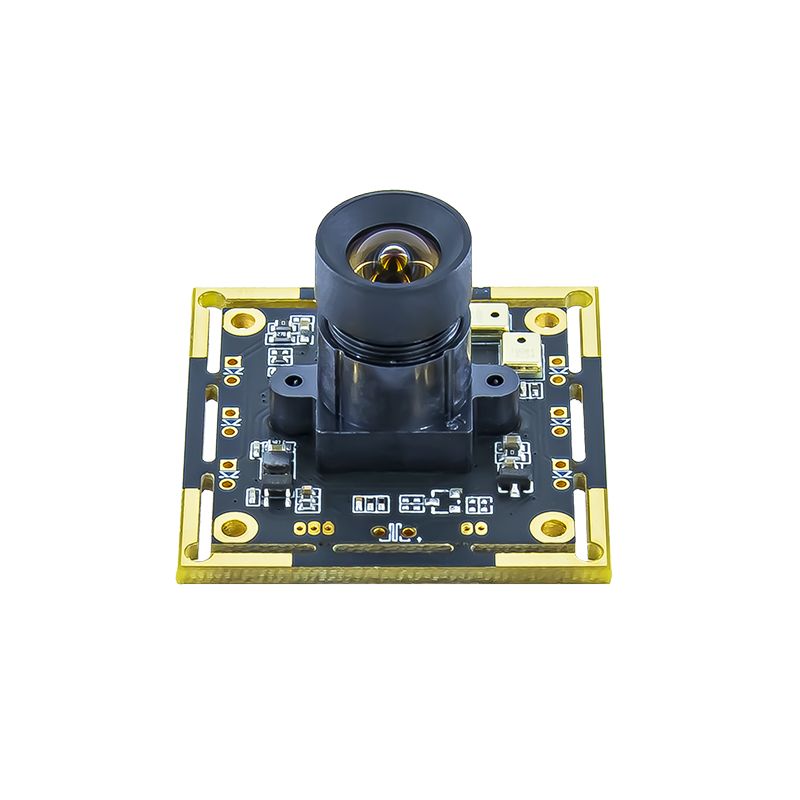

2MP OV2710 1080P HD Camera Module With Microphone For Industrial Device

2MP OV2710 1080P HD Camera Module With Microphone For Industrial Device

The OV2710-1E is a true full HD (1080p) CMOS image sensor designed specifically to deliver high-end HD video to digital video camcorders, notebooks, PC webcam, security and other mobile applications. The 1/2.7-inch OV2710-1E addresses the fast growing demand for affordable, HD-quality digital video solutions for video conferencing and recording. The OV2710-1E is among the very first no-compromise full HD (1080p) sensors available on the market, meaning it offers HD video format with a display resolution of 1920 x 1080 pixels, operating at 30 frames per second. Built with OmniVision's proprietary 3 µm OmniPixel3-HS™ high sensitivity pixel technology, the OV2710-1E delivers low-light sensitivity of 3700 mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enabling cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux. The OV2710-1E supports multiple platform architectures and controllers with both parallel and MIPI interfaces. By allowing system designers to leverage the same opto-electrical design across various products and multiple market segments, the OV2710-1E significantly reduces product development time. OmniVision's OmniPixel3-HS pixel technology has already been proven in high quality webcam/video applications and is now available in 1080p full HD in the OV2710-1E.

Applications:

Notebooks PC

 Webcams

Camcorders

Security

Digital Still Cameras

Telepresence Portable

Media Players

Product Specification:

Module No.	HBVCAM-F2316HD V44
Module Size	38mm × 38mm × 17.50mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	570mW
Operating system request	Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2710 (1/2.7” )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	3300mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 160x120   30FPS /  YUY2 160x120     30FPS MJPEG 320x240   30FPS /  YUY2 320x240     30FPS MJPEG 352x288   30FPS /  YUY2 352x288     30FPS MJPEG 640x480   30FPS /  YUY2 640x480     30FPS MJPEG 1280x720  30FPS /  YUY2 1280x720    10FPS MJPEG 1920x1080 30FPS /  YUY2 1920x1080    5FPS     MJPEG 640x360   60FPS /  YUY2 640x480   30FPS MJPEG 800x600   60FPS /  YUY2 800x600   20FPS MJPEG 1280x720  60FPS /  YUY2 1280x720  10FPS
S/N Ratio	39 db
Max Dynamic Range	69 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.4
EFL	3.0mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
