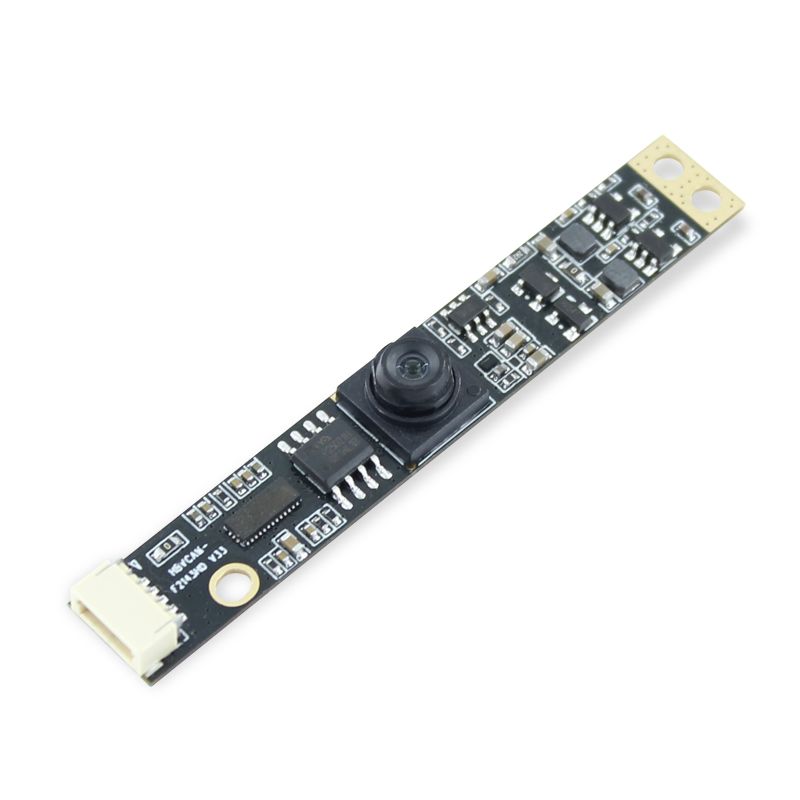

2MP OV2720 1080P Auto Focus Camera Module For All-in-one Computer

Module No.

HBVCAM-F2143HD V33

Module Size

60mm × 9mm × 5.0mm±0.2MM

Temperature (Operation)

-30°C to 70°C

Temperature (Stable Image)

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Aout

Object distance

30CM-infinity

Resolution

600LW/PH (Center)

PCB printing ink

Black

interface

USB 2.0

Power suuply

USB bus power

supply voltage

DC 5V±5%

Maximum Power consumption

590mW

Operating system request

Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Sensor

OV2720 (1/5.8” )

Seneor Package

CSP,Bare Die

Maximum resolution

1920*1080

Sensitivity

650mV /（lux-sec）

Pixel Size

1.4µm x 1.4µm

Maximum Image Transfer Rate

MJPEG 640x480   30FPS /  YUY2 640x480     30FPS

MJPEG 800x600   30FPS /  YUY2 800x600     10FPS

MJPEG 1280x720  30FPS /  YUY2 1280x720    10FPS

MJPEG 1280x800  30FPS /  YUY2 1280x800    10FPS

MJPEG 1280x1024 30FPS /  YUY2 1280x1024    5FPS

MJPEG 1920x1080 30FPS /  YUY2 1920x1080    5FPS

MJPEG 640x360   60FPS /  YUY2 640x480   30FPS

MJPEG 800x600   60FPS /  YUY2 800x600   20FPS

MJPEG 1280x720  60FPS /  YUY2 1280x720  10FPS

S/N Ratio

35 db

Max Dynamic Range

68 db

Shutter type

Electronic rolling shutter

AGC/AEC/Whiter balance

Auto

Output Formats

YUY2/MJPEG

Microphone

NC

Lens Construction

5P

F/No

2.2

EFL

1.8mm

FOV

86°

TV Distortion

<1%

Relative Illumination (Sensor)

70%

IR Filter

650±10nm

Module Package

Anti-electrostatic tray

Certifications

FCC/CE/ROSH
