This 2MP USB2.0 OG02B10 Global Shutter Camera Module is an advanced imaging solution, offering exceptional performance for various applications such as industrial vision, robotics, and AI integration. Equipped with a 2-megapixel resolution and 120 frames per second (FPS) capture capability, this module ensures smooth and crisp video quality, even in fast-moving environments.

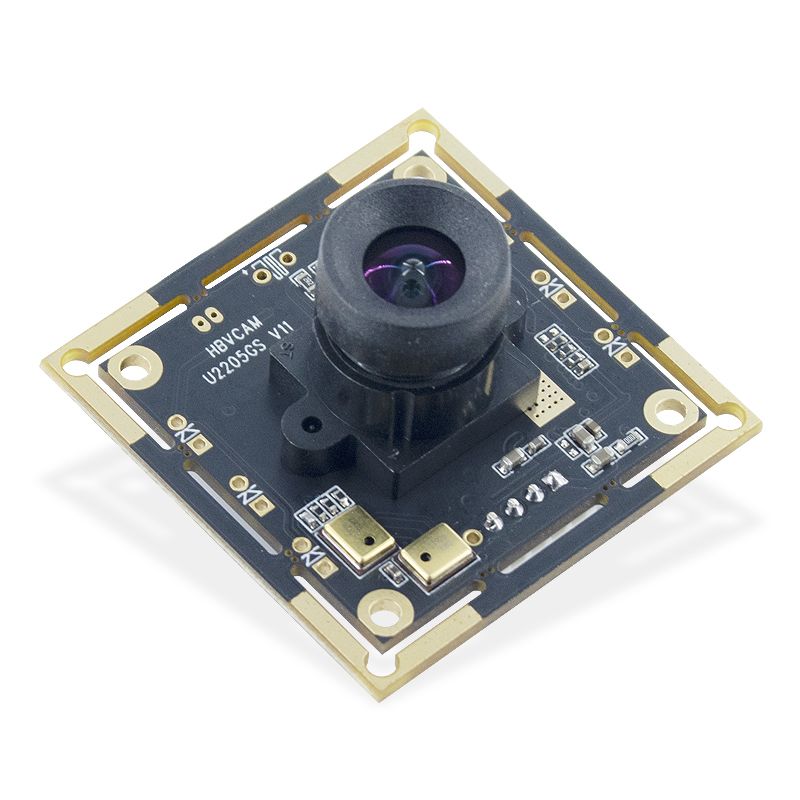

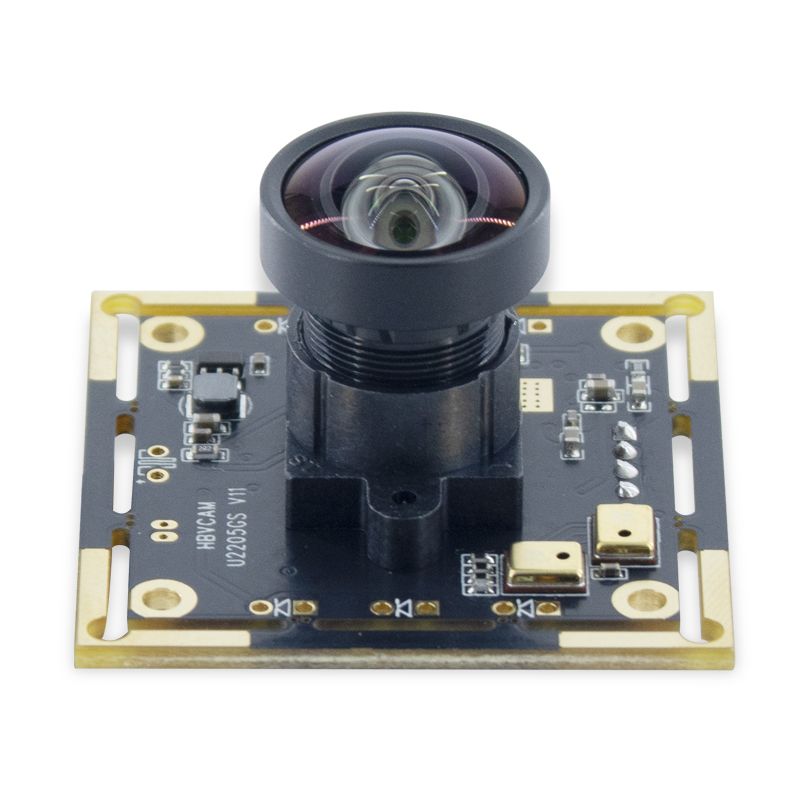

2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With Microphone
Module No. | HBVCAM-U2205GS V11 | |||
Module Size | 38mm × 38mm × 18.00mm±0.5MM | |||
Temperature (Operation) | -30°C to 70°C | |||
Temperature (Stable Image) | 0°C to 50°C | |||
Assembly technique | SMT (ROSH) | |||
Focus | Fixed | |||
Object distance | 30CM-infinity | |||
Resolution | 600LW/PH (Center) | |||
PCB printing ink | Black | |||
interface | ||||
Power supply | USB bus power | |||
supply voltage | DC 5V±5% | |||
Maximum Power consumption | 890 mW | |||
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with svc | |||
Sensor | OG02B10 (1/2.9” ) | |||
Senior Package | CSP, Bare Die | |||
Maximum resolution | 1600*1200 | |||
Sensitivity | 1900mV /（lux-sec） | |||
Pixel Size | 3.0µm x 3.0µm | |||
MJPEG 640x480 | 120FPS / | YUY2 640x480 | 30FPS | |
MJPEG 848x480 | 120FPS / | YUY2 848x480 | 15FPS | |
Maximum Image Transfer Rate | MJPEG 1280x720 MJPEG 1280x960 | 120FPS / 60FPS / | YUY2 1280x720 YUY2 1280x960 | 10FPS 1FPS |
MJPEG 1600x1200 | 60FPS / | YUY2 1600x1200 | 1FPS | |
S/N Ratio | 37.4db | |||
Max Dynamic Range | 68db | |||
Shutter type | Electronic rolling shutter | |||
AGC/AEC/Whiter balance | Auto | |||
Output Formats | YUY2/MJPEG | |||
Microphone | Support | |||
Lens Construction | 2G2P | |||
F/No | 2.4 | |||
EFL | 3.0 mm | |||
FOV | 100° | |||
TV Distortion | <5% | |||
Relative Illumination (Sensor) | 70% | |||
IR Filter | 650±10nm | |||
Module Package | Anti-electrostatic tray | |||
Certifications | FCC/CE/ROSH | |||
1. Standard industrial camera 38*38mm& 32mm*32mm board structure
2. The chip can choose color or black and white images (OG02B10/OG02B1B)
3. Can add 6 plugins for welding white light - can be made into an on/off image or photosensitive control - can be extended to the external frame light board
4. There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc. (additional charge for customization)
5. Multi-lens optional
Huiber Vision Technology Co., Ltd. a professional USB2.0 Global Shutter Camera manufacturer, was established in 2013, located in Shenzhen, Guangdong Province.
● Having our factory, we can offer the best price and quality to our customers.
● Customized, designed and short development cycle time.
● Proven sales records by famous customers worldwide.
This high-performance camera module is perfect for developers and integrators looking for reliable imaging solutions in industrial automation, machine vision, and more. We adhere to the development concept of “ Quality First Client Supreme”, welcome to contact us!
Do you have a colorful global shutter camera module?
Yes, this 2MP OG02B10 camera module have two versions: colorful and black &white version, you can choose what you need
Can you add an Infrared Led for this global shutter camera module?
Yes, this global shutter camera can be solded infrared led for night vision.
Is this camera have GPIO function?
Yes,There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc.
