4MP OV4689 2K Industrial Camera Module For Linux, Window and Android System

4MP OV4689 2K Industrial Camera Module For Linux, Window and Android System

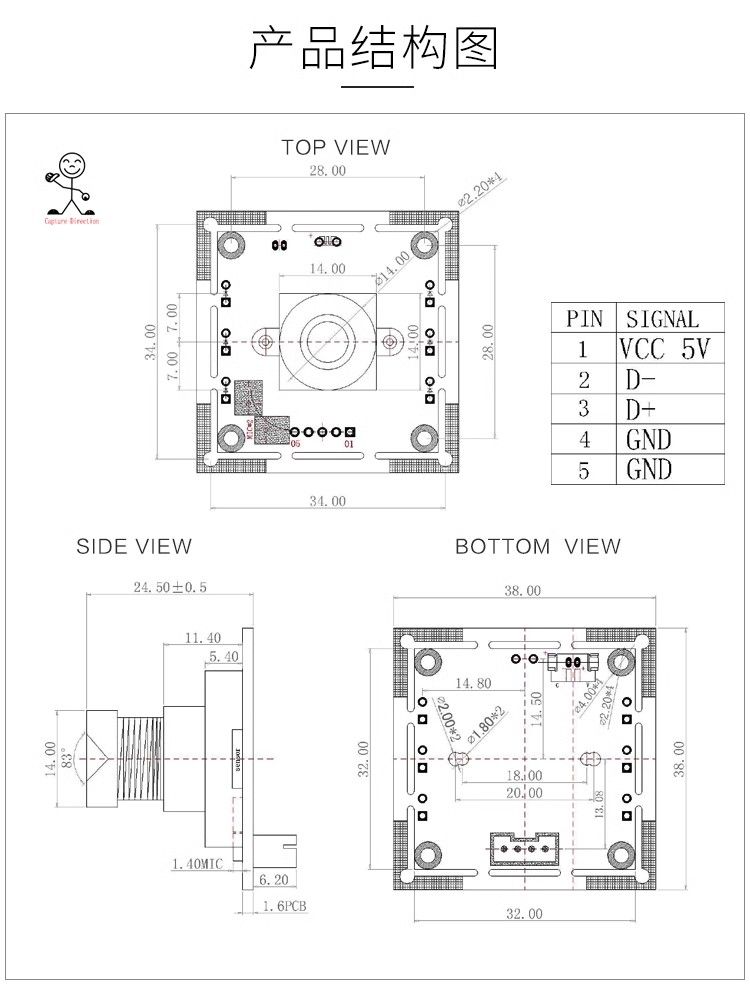

1. Product size: 38 * 38 * 24.5 ± 0.5 MM

2. Product chip: OV4689 (1/3 '')

3. Maximum resolution, format, frame rate: 2560 * 1440 MJPEG 30FPS

1920*1080 MJPEG 60FPS

4. Maximum viewing angle: 80 ° with distortion

5. Built in dual digital microphone

6. Sample testing line 4P-2.0MM-50CM

OV4689 Sensor : The OV4689 is a high performance 4-megapixel CameraChip sensor in a native 16:9 format designed for next-generation surveillance and security systems. The sensor utilizes an advanced 2-micron OmniBSI™-2 pixel to provide best-in-class low-light sensitivity and high dynamic range (HDR).The 1/3-inch OV4689 can capture full-resolution4-megapixel high definition (HD) video at 90 frames per second (fps), 1080p HD at 120 fps, and binned 720p HD at 180 fps. The sensor's high frame rates enable crisp, clean image and video capture of fast moving objects.The OV4689 provides timing to capture full-resolutionHDR using frame-based "sequential HDR" or line-based "staggered HDR", and quarter resolution HDR using  "alternate row HDR". The benefits of using "staggered HDR" compared to "sequential HDR" are significant reduction in motion artifacts and lower memory requirement for host processing. These modes produce high quality full-resolution 4-megapixel HDR video under extreme variations of bright and dark conditions, ensuring high contrast and excellent scene reproduction.The OV4689 features a high-speed 4-lane MIPI serial output interface to facilitate the required high data transfer rate. The OV4689 is available in a chip scale package (CSP)

Applications

IP Cameras

Sports Cameras

Home Monitoring

Security Camera
