Product Features:
1. Standard industrial camera board:38mm*38mm/32mm* 32mm
2. IMX678-1/1.8 large pixel mainly promotes high-end, with high pixel effect requirements, 4k large screen, and live broadcast camera
3. Built-in dual digital microphone
4. Can be used for night vision - expandable light board
The IMX678-AAQR1-C is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Application: Security cameras)
◆CMOS image sensor
◆Image size Diagonal 8.86 mm (Type 1/1.8) approx. 8.40 M pixels, All pixels
◆Total number of pixels 3856 (H) × 2200 (V) approx. 8.48 M pixels
◆Number of effective pixels 3856 (H) × 2180 (V) approx. 8.40 M pixels
◆Number of active pixels 3856 (H) × 2176 (V) approx. 8.39 M pixels
◆Number of recommended recording pixels 3840 (H) × 2160 (V) approx. 8.29 M pixels
◆Unit cell size 2.0 μm (H) × 2.0 μm (V)
Module No. | HBVCAM-4K2353 V11 |

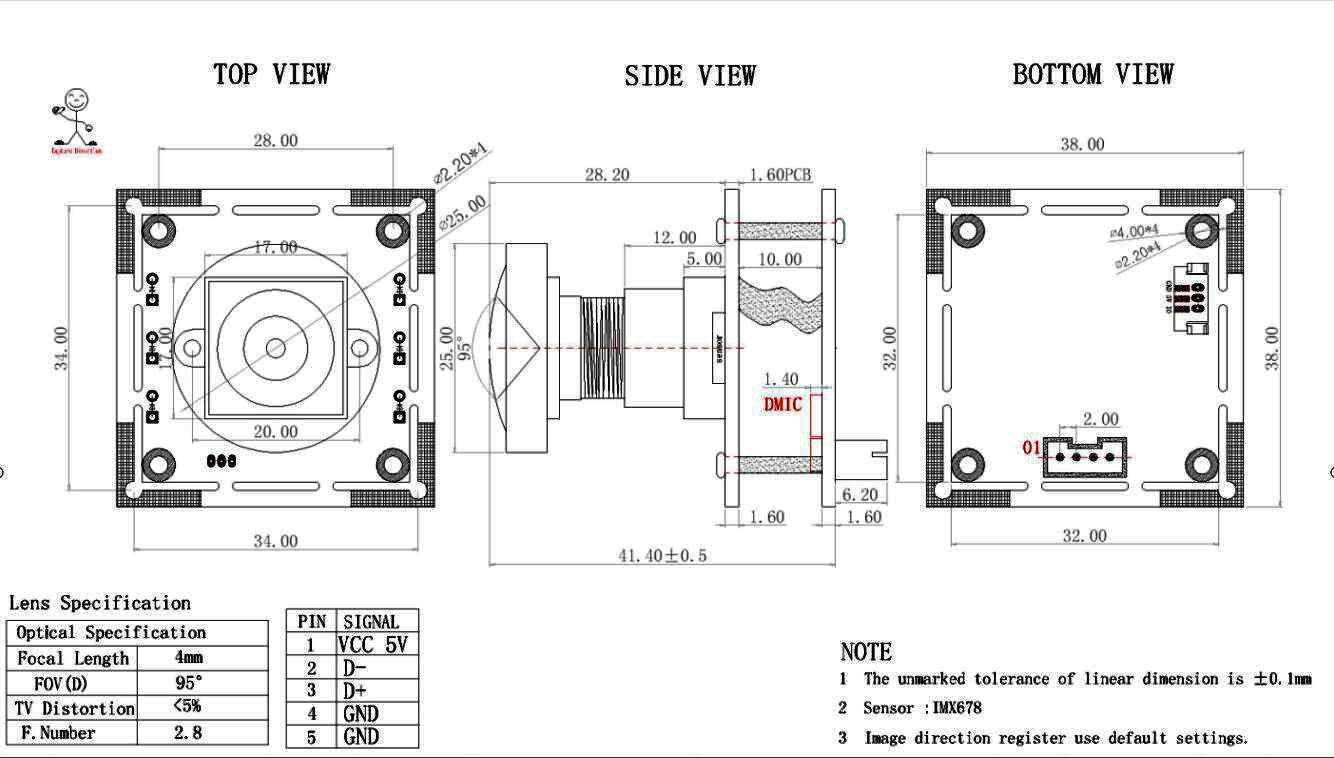

Module Size | 38mm × 38mm × 42.40mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power supply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX577 (1/2.3” ) |
Senior Package | CSP, Bare Die |
Maximum resolution | 3840*3040 |
Sensitivity | 50mV /（lux-sec） |
Pixel Size | 1.55µm x 1.55µm |
Maximum Image Transfer Rate | MJPEG 1280x720 60FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 1FPS MJPEG 2408x1536 30FPS / YUY2 2408x1536 1FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
S/N Ratio | 40db |
Max Dynamic Range | 83db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 5G2P |
F/No | 2.8 |
EFL | 4.0 mm |
FOV | 85° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
1. What is the resolution of the IMX678 camera module?
The 8MP IMX678 camera module captures high-resolution images with a true 4K output (3840 x 2160 pixels), providing excellent detail and clarity for industrial applications.
2. What type of sensor does the camera module use?
This camera module uses Sony's IMX678 sensor, which is renowned for its high image quality, low noise, and superior performance in various lighting conditions.
3. What are the common applications for this camera module?
The 8MP True 4K IMX678 camera module is ideal for a wide range of industrial applications, including machine vision, automated inspection, robotics, industrial monitoring, and high-resolution imaging for quality control.
4. What frame rate does the camera support?
The camera supports high frame rates, delivering 4K video at 60FPS, making it suitable for capturing fast-moving objects without sacrificing image quality.
5. Does the camera module support low-light imaging?
Yes, the IMX678 sensor is optimized for low-light conditions, offering excellent performance in environments with challenging lighting, ensuring clear and detailed images even in dimly lit settings.
6. What interface options are available for connectivity?
The 8MP IMX678 camera module typically comes with interfaces like MIPI or USB, depending on the variant, allowing easy integration with various industrial systems and equipment.
7. Is this camera module compatible with industrial automation systems?
Yes, the module is designed for seamless integration with industrial automation systems, making it a great choice for applications like machine vision, object detection, and precision monitoring.
8. Can this camera module be used in harsh environments?
The 8MP IMX678 camera module is robust and can be used in industrial environments. However, for extremely harsh conditions, additional housing or protective measures may be necessary to ensure durability and longevity.
9. What are the benefits of using a true 4K resolution camera in industrial applications?
True 4K resolution provides exceptional image detail and clarity, making it ideal for tasks that require precision, such as defect detection, surface inspection, and high-resolution recording for analysis.
10. How easy is it to integrate this camera module into existing systems?
The IMX678 camera module is designed with ease of integration in mind. It supports common industrial interfaces and protocols, allowing for straightforward installation in most industrial equipment setups.
11. Does the camera module support customization?
Yes, customization options are available for the 8MP IMX678 camera module, including lens options, form factor adjustments, and specific feature requirements to match your industrial needs. Contact us for more details.
12. What is the power consumption of the module?
The power consumption of the 8MP IMX678 camera module is optimized for industrial use, offering efficient energy usage while delivering high-performance imaging. Specific power details depend on the variant, but it is generally designed for continuous operation with low power draw.
13. Does this camera have a case?
Yes, we can some cases of this camera
