Product Advantages:
1. Standard industrial camera board structure:38mm*38mm/32mm*32mm size
2. The main features: high pixel effects, 4k large screens, and live streaming camera
3. Built in dual digital microphone
4. Can be used for autofocus large motor AF
5. 6 plugins can be added for soldering. The white light can be turned on or off, and the light can be controlled by photosensitivity. It can also be used for night vision and an expandable light board
8.29 million pixels true 4K resolution large screen industrial camera, industrial equipment, advertising machine, all-in-one machine and other intelligent terminal embedded camera modules
2. Product size: 38 * 38 * 24.8 ± 0.5 MM
3. Product chip: IMX317 (1/2.5 '')
4. Maximum resolution, format, and frame rate: 3840 * 2160 MJPEG 30FPS
5. Maximum viewing angle: 80 ° without distortion
6. Built in dual digital microphone

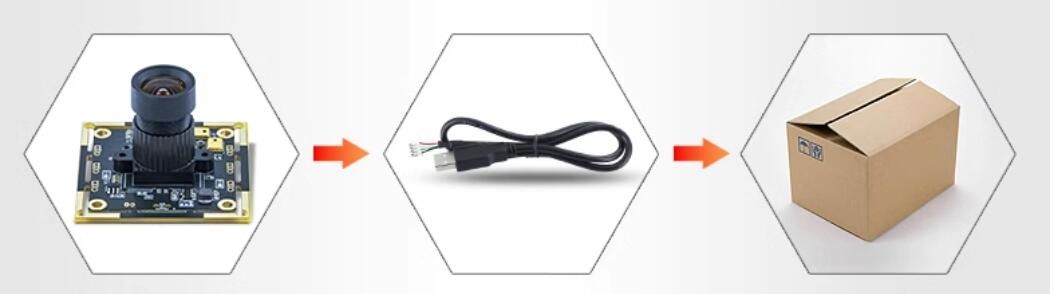

7. Sample matching test line 4P-2.0MM-50CM
The IMX317CQC-C is a diagonal 7.20 mm (Type 1/2.5) CMOS image sensor with a color square pixel array and approximately 8.51 M effective pixels. The 12-bit digital output makes it possible to output the signals of approximately
8.51 M effective pixels with high definition for shooting still pictures. It also operates with three power supply voltages: analog 2.8 V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption.
Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal
and vertical addition and subsampling. Realizing high-sensitivity, and low dark current, this sensor also has an electronic
shutter function with variable storage time.
In addition, this product is designed for use in consumer use digital still cameras and consumer-use camcorders.
When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality
and reliability of the product. Therefore, don't use this for applications other than consumer use digital still cameras and consumer use camcorders.
In addition, individual specification change cannot be supported because this is a standard product.

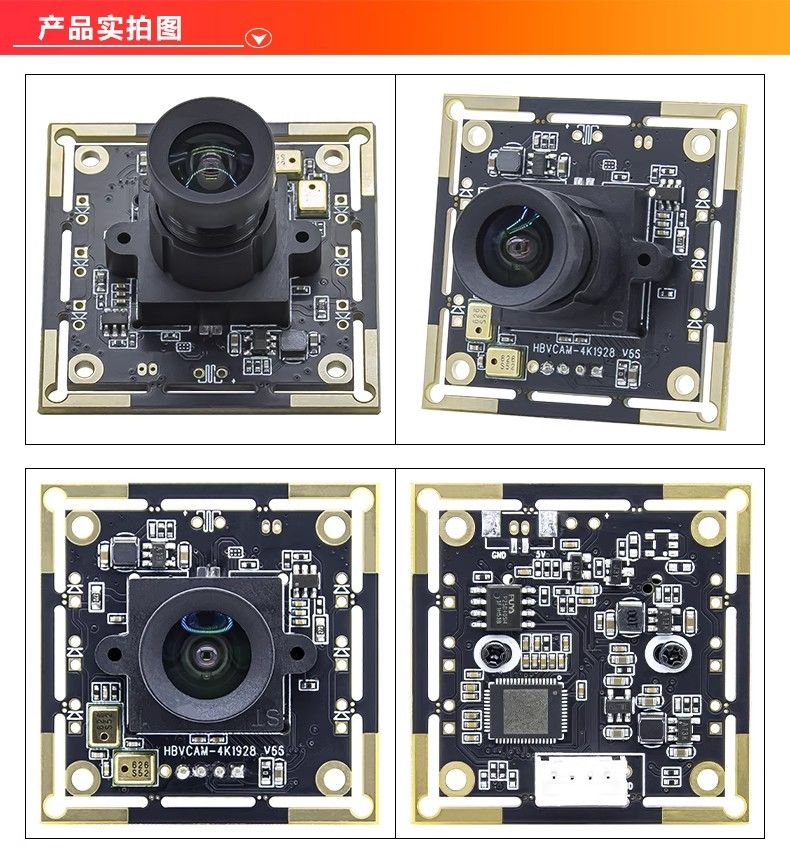

Module No. | HBVCAM-4K1928 V55 |
Module Size | 38mm × 38mm × 24.5mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 800LW/PH (Center) |
PCB printing ink | black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 940mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX317 (1/2.5” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 3840*2160 |
Sensitivity | 760mv /（lux-sec） |
Pixel Size | 1.62µm x 1.62µm |
Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 44 db |
Max Dynamic Range | 82 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 2G2P |
F/No | 2.4 |
EFL | 4.2mm |
FOV | 85° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
