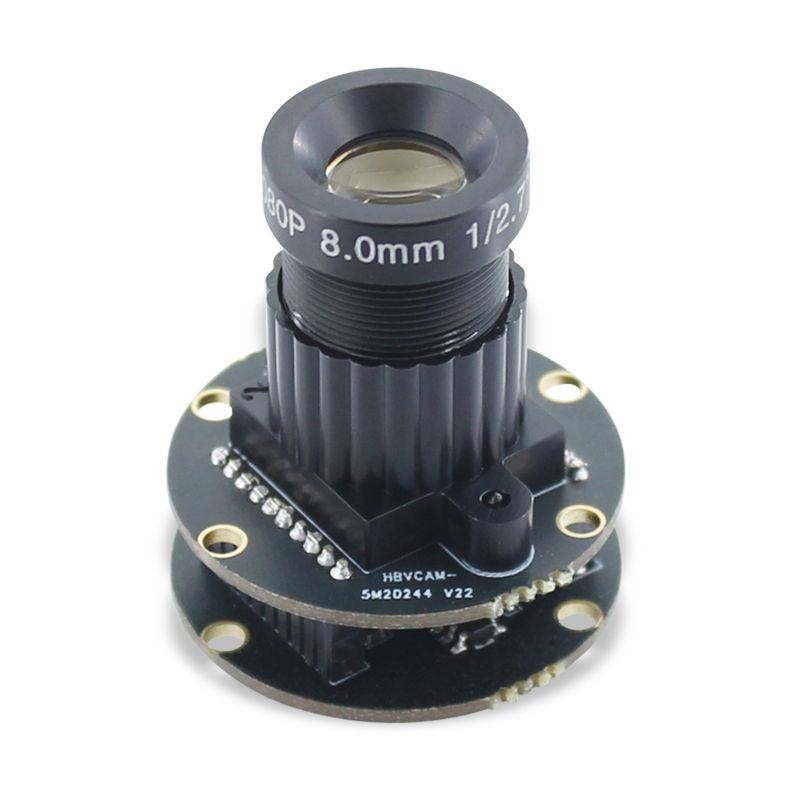

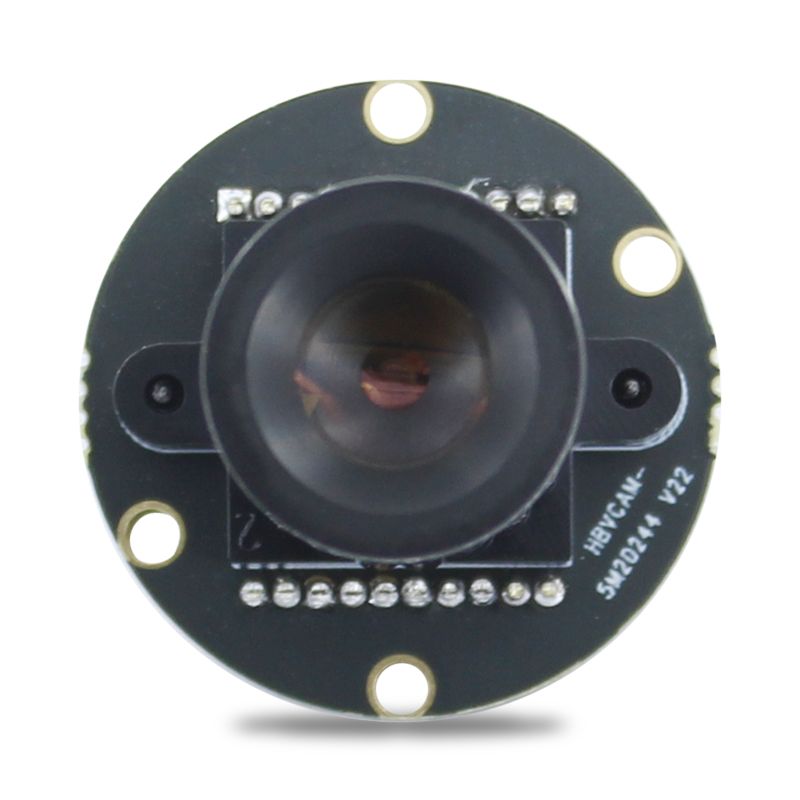

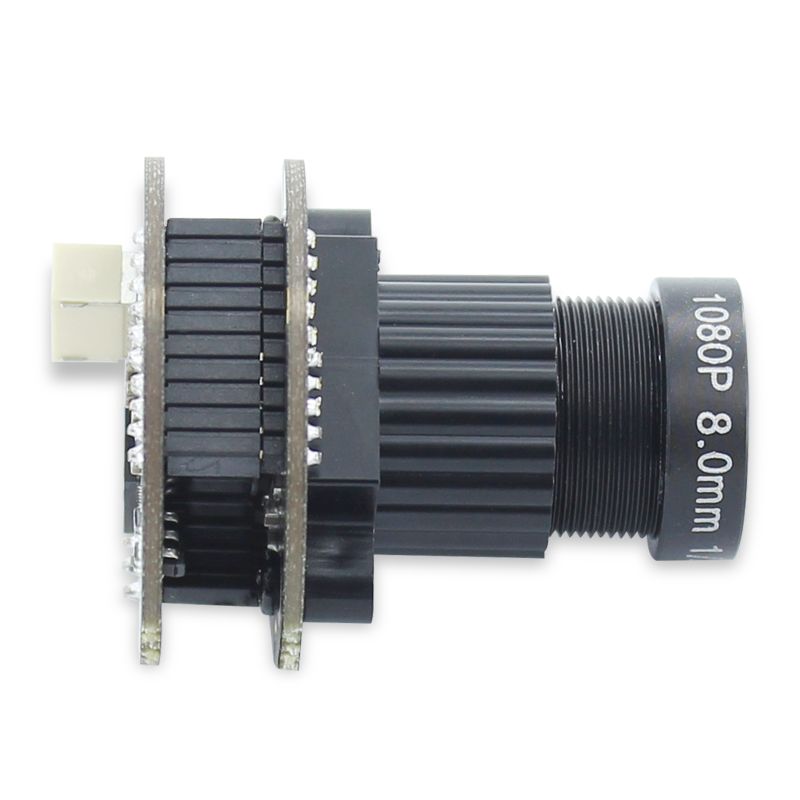

5Megapixel 2K Cylindrical Pipeline Industrial Equipment
*With 2560*1440 2K resolution 30fps
*The circular structure is mainly used for installation in circular large tubes, telescopes, etc
*Multiple lenses can be selected
*Large pixel 1/2.5 "
*Hardware wide dynamic 85db, backlight shooting

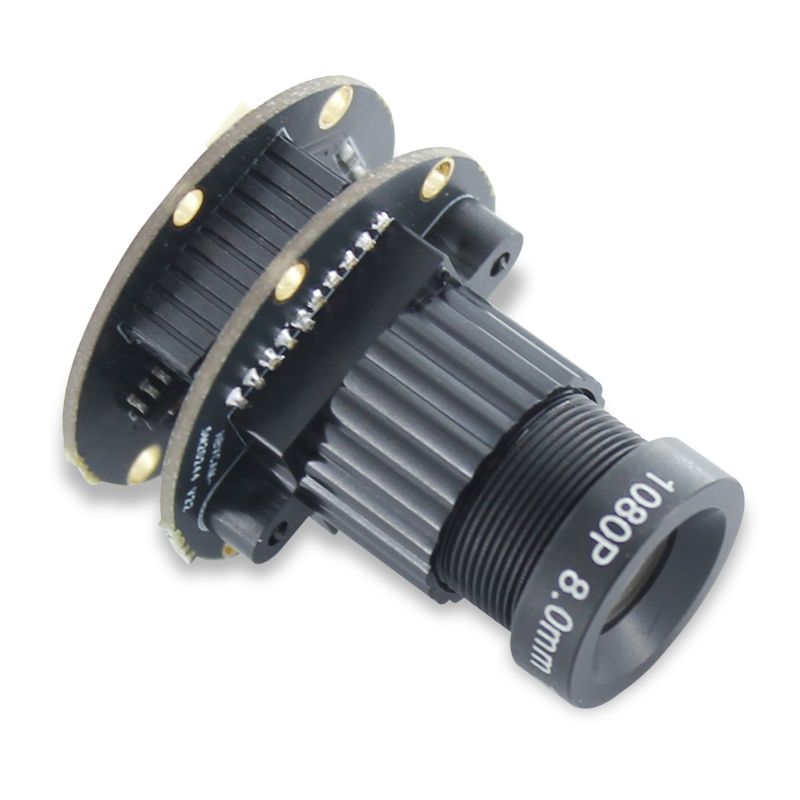

5Megapixel 2K Cylindrical Pipeline Industrial Equipment
*Size:F25MM Circle
*Sensor：PS5520(1/2.5'')
*Maximum Resolution：2592*1944 30fps
*Fov：110°

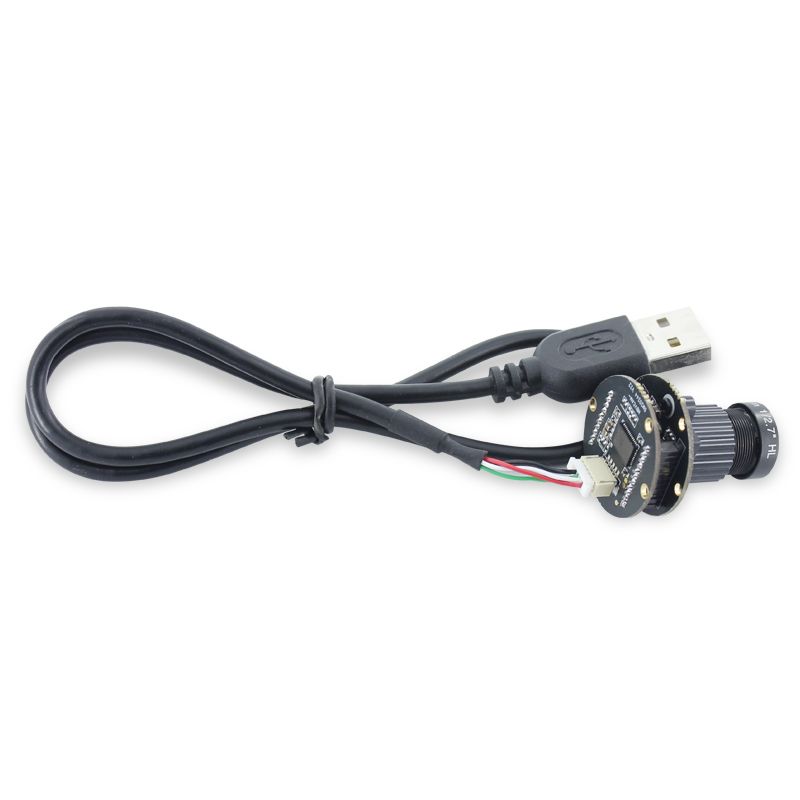

*Interface:USB2.0
*Focus:Fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

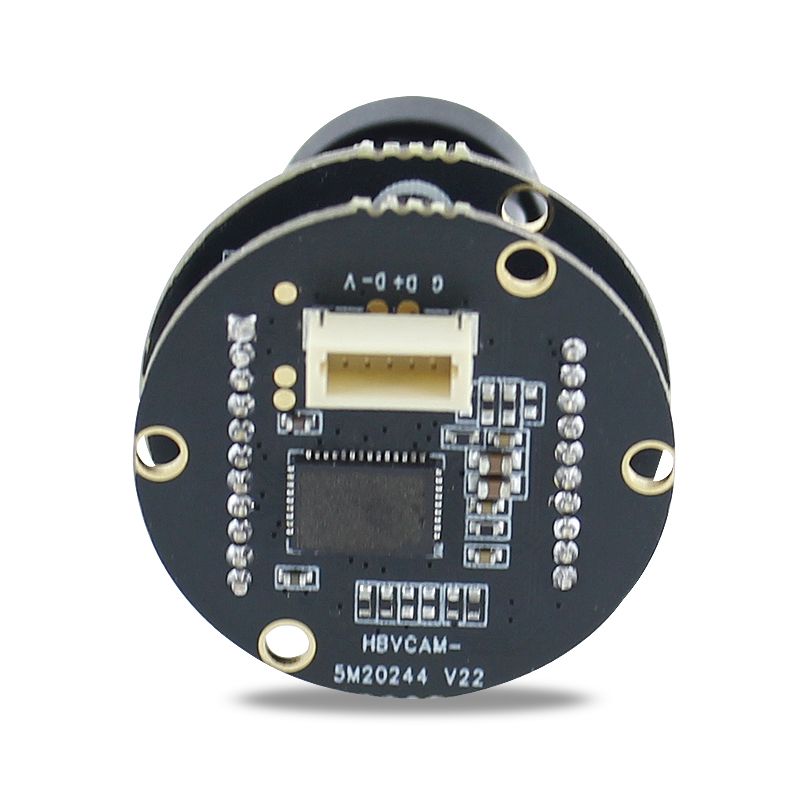

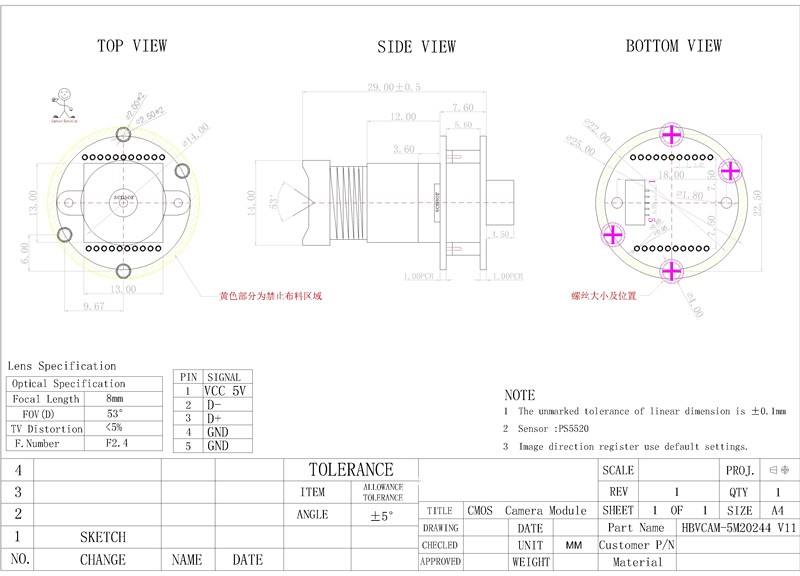

Module No. | HBVCAM-5M20244 V11 |
Module Size | Φ25 × 31mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 600 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | PS5520 (1/2.5” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2592*1944 |
Sensitivity | 3300mV /（lux-sec） |
Pixel Size | 3.0µm x 3.0µm |
Maximum Image Transfer Rate | MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 3FPS |
S/N Ratio | 39 db |
Max Dynamic Range | 85 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 2G2P |
F/No | F2.4 |
EFL | 8mm |
FOV | 53° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Q1.Are you factory or trade company?

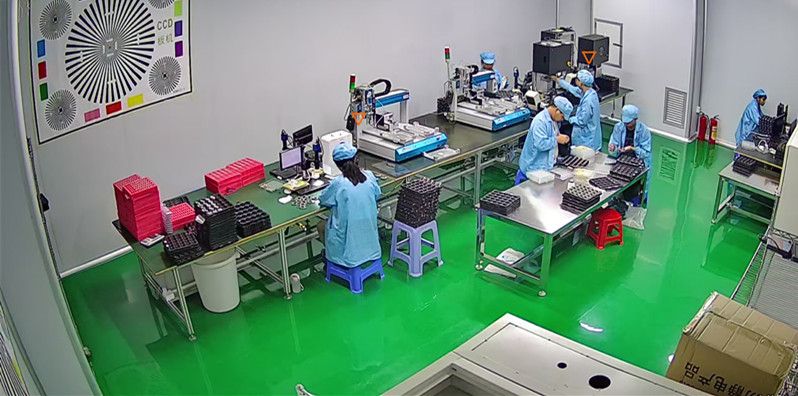

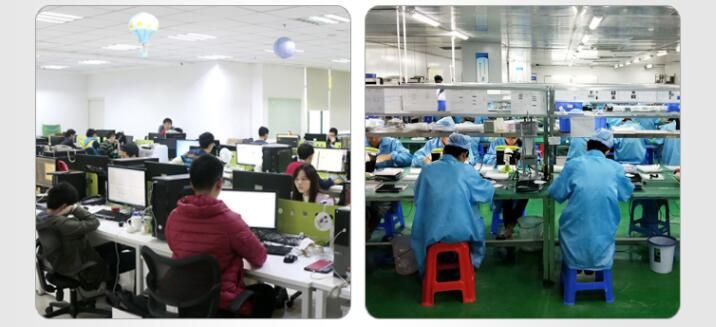

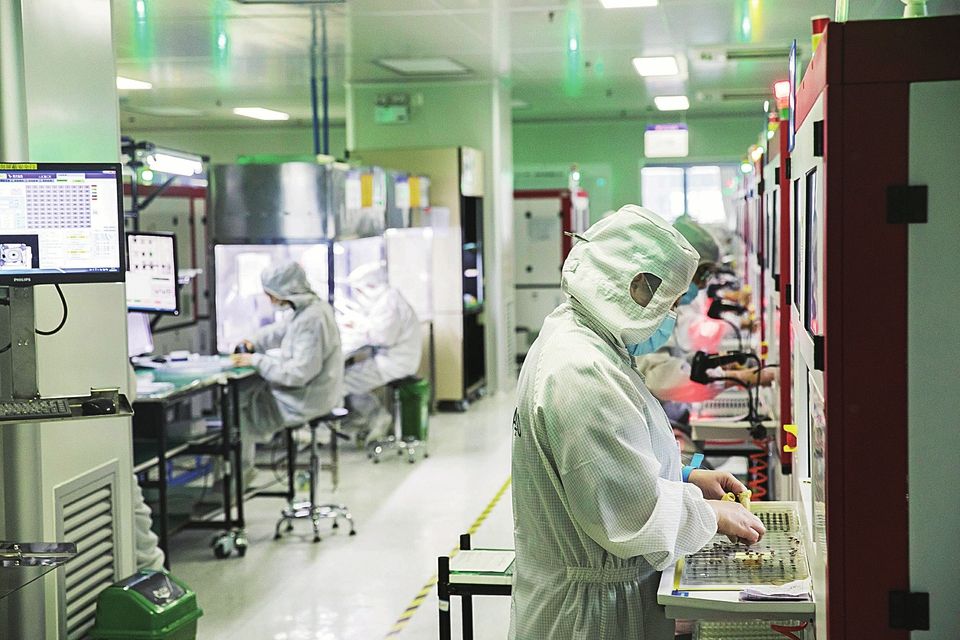

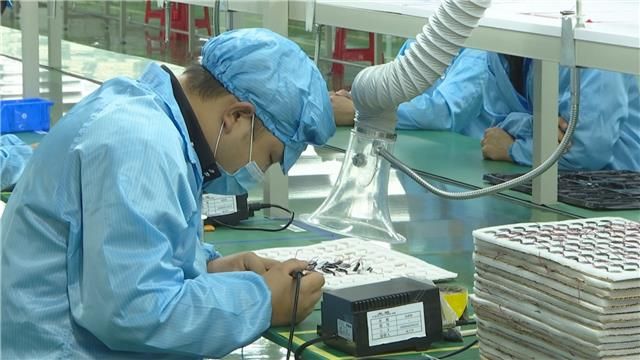

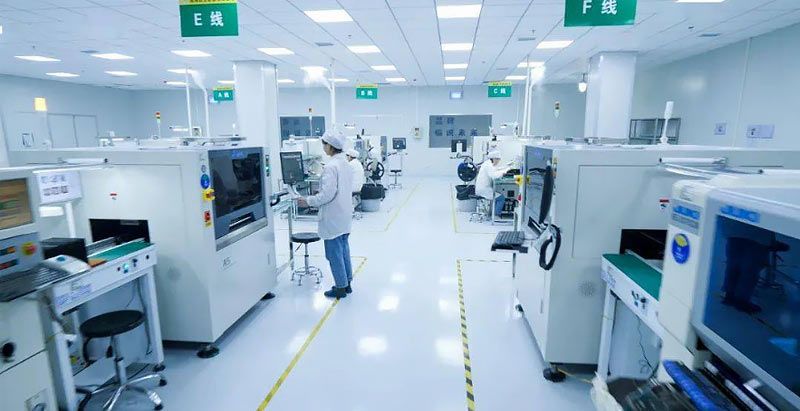

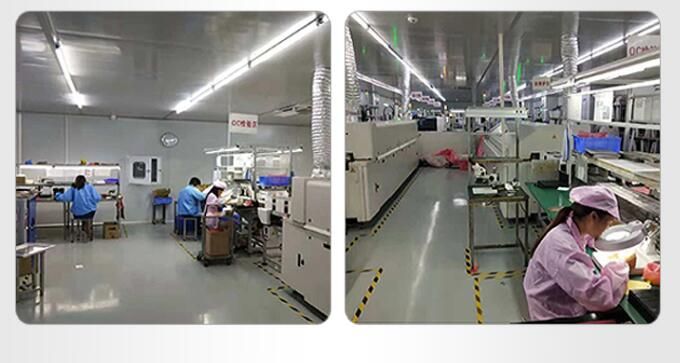

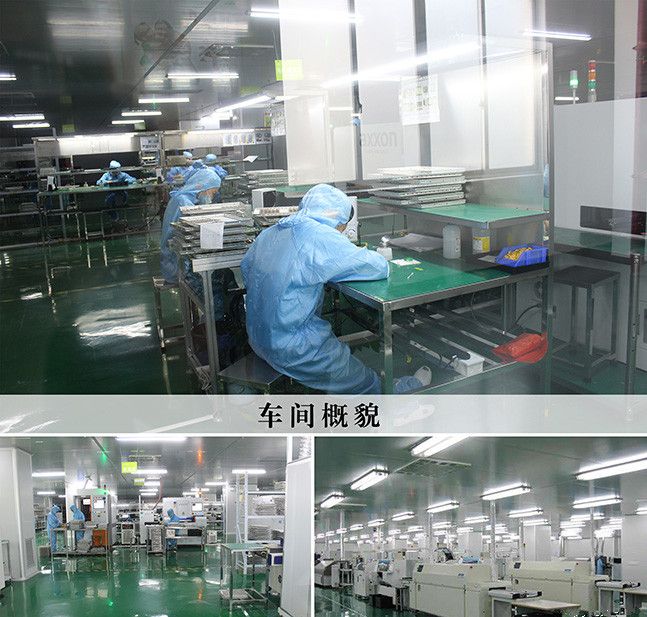

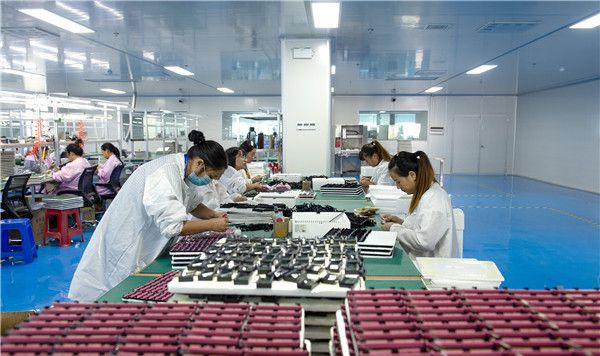

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
