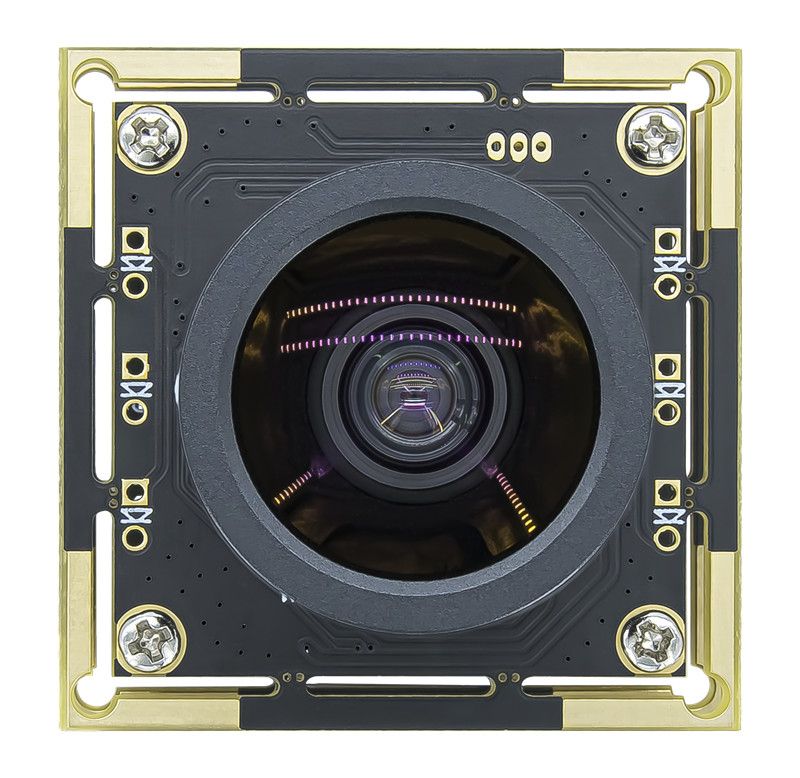

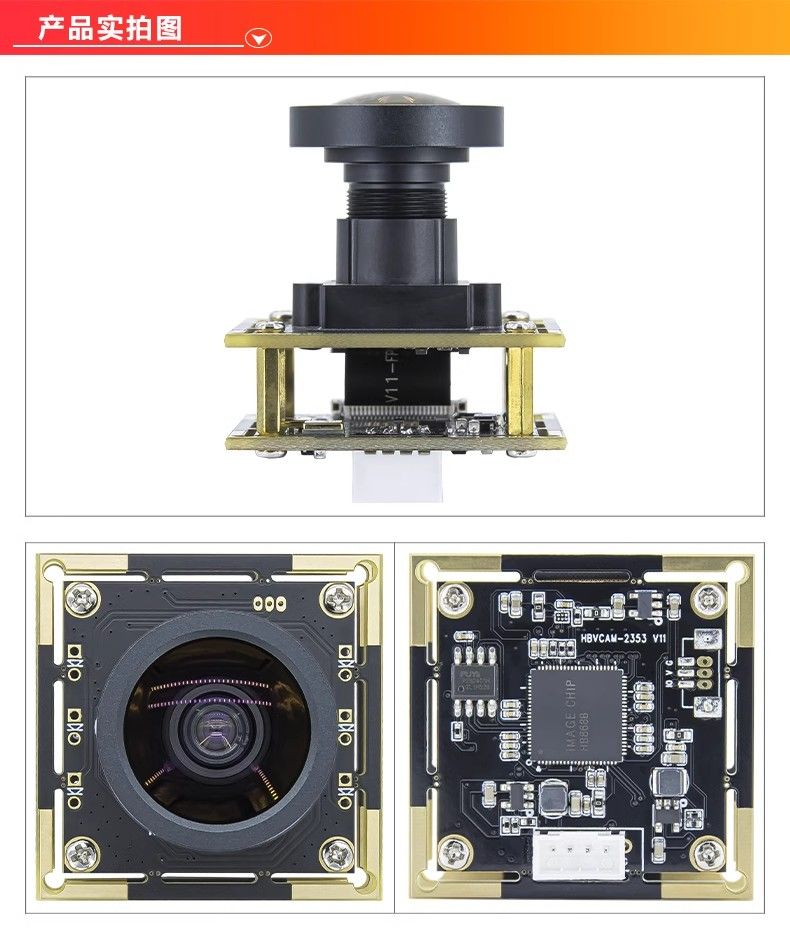

8.29 million pixel true 4K resolution large screen industrial cameras, industrial equipment, advertising machines, all-in-one machines and other intelligent terminal embedded camera modules
1. Standard industrial camera 38, 32mm board structure
2. IMX678-1/1.8 large pixel mainly promotes high-end, high pixel effect with requirements, large screen 4k screen, live streaming camera
3. Built in dual digital microphone
4. Can be used for night vision - expandable light board
8.29 million pixel true 4K resolution large screen industrial cameras, industrial equipment, advertising machines, all-in-one machines and other intelligent terminal embedded camera modules
2. Product size: 38 * 38 * 40.5 ± 0.5 MM
3. Product chip: IMX678 (1/1.8 '')
4. Maximum resolution, format, frame rate: 3840 * 2160 MJPEG 30FPS
5. Maximum viewing angle: 95 ° distortion free 25mm head
6. Built in dual digital microphone
7. Sample testing line 4P-2.0MM-50CM
Product Specification:
Module No. | HBVCAM-4K2353 V11 |
Module Size | 38mm × 38mm × 42.40mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX678 (1/1.8” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 3840*2160 |
Sensitivity | 50mV /（lux-sec） |
Pixel Size | 1.55µm x 1.55µm |
Maximum Image Transfer Rate | MJPEG 1280x720 60FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 1FPS MJPEG 2408x1536 30FPS / YUY2 2408x1536 1FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
|
S/N Ratio | 40db |
Max Dynamic Range | 83db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 4G2P |
F/No | 2.8 |
EFL | 4.0 mm |
FOV | 85° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product Drawings:
