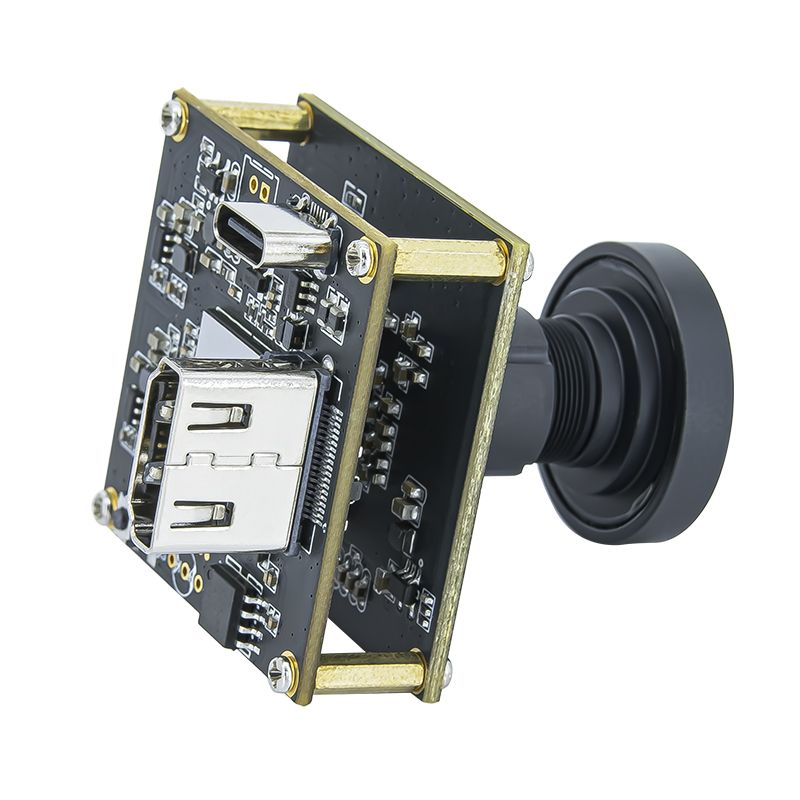

IMX678 8MP HD HDMI 4K Camera Module For Live streaming, Video booths, Commercial displays Equipment

IMX678 8MP HD HDMI 4K Camera Module For Live streaming, Video booths, Commercial displays Equipment

The IMX678-AAQR1-C is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a  square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V  triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved  through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

Features

◆CMOS active pixel type dots

◆Built-in timing adjustment circuit, H/V driver and serial communication circuit

◆Input frequency: 13.5 MHz / 18 MHz / 24 MHz / 27 MHz / 36 MHz / 37.125 MHz / 72 MHz / 74.25 MHz

◆Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29M pixel

◆Readout mode All-pixel scan mode Horizontal / Vertical 2/2-line binning mode Window cropping mode Horizontal / Vertical direction - Normal / Inverted readout mode

◆Readout rate Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 72 frame/s

◆High dynamic range (HDR) function Digital overlap HDR Clear HDR

◆Synchronizing sensors function

◆Variable-speed shutter function (resolution 1H unit)

◆Conversion gain switching (HCG Mode / LCG Mode)

◆CDS / PGA function 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB) 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)

◆Supports I/O CSI-2 serial data output (2 Lane / 4 Lane / 8Lane / 4Lane × 2ch) RAW10 / RAW12 output

◆AR coating on cover glass (Both sides)

Product Specification:

Product Drawing:
