Global Shutter mode, which can also be thought of as a 'Snapshot' exposure mode, means that all pixels of the array are exposed simultaneously, thus enabling 'freeze frame' capture of fast moving or fast changing events and in this respect, global shutter can be thought of as behaving like an interline CCD sensor.
Cameras have been capturing moments for centuries, and at the heart of this process is the shutter. Traditional mechanical shutters physically open and close to expose the sensor to light. In contrast, electronic shutters control the exposure time electronically without any moving parts.
The rolling shutter is common in many digital cameras. It captures the image line by line from top to bottom. While efficient, this method can lead to distortions, especially when capturing fast-moving subjects or during quick camera movements, creating a jello-like effect.
Enter the global shutter. Unlike the rolling shutter, a global shutter captures the entire frame at once. This means every pixel on the sensor is exposed to light simultaneously, eliminating distortions and capturing a true snapshot of the moment.
One of the most significant advantages of a global shutter is its ability to eliminate distortion. Whether you’re photographing a race car or a high-speed industrial process, a global shutter ensures that the image is free from the rolling shutter’s characteristic skew and wobble.
With no motion artifacts or distortions, global shutters significantly enhance overall image quality. Every detail is crisp and clear, making it ideal for high-precision applications.

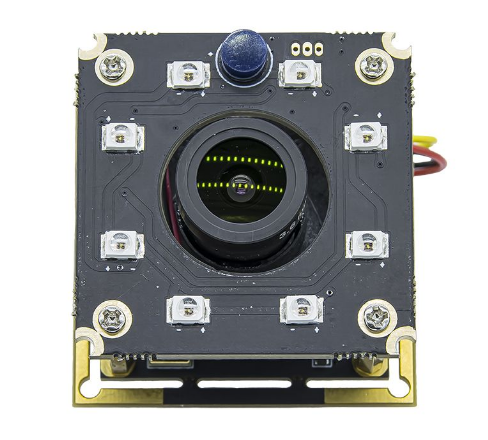

Global shutters camera module excel in scenarios involving fast-moving objects. From capturing athletes in motion to monitoring rapid industrial processes, they ensure that every frame is accurate and free of motion blur.
In industrial settings, precision is paramount. Global shutters are used in machine vision systems to inspect products at high speeds, ensuring quality control without missing any details.
Robots rely on accurate vision systems to perform tasks efficiently. Global shutters provide the clear and precise images necessary for robotic systems to make real-time decisions and navigate complex environments.
Sports photographers need to freeze moments of intense action. Global shutters allow them to capture athletes in peak performance without any distortion, delivering stunning and accurate images.
In medical imaging, clarity and precision are crucial. Global shutters help in capturing detailed images for diagnostic purposes, ensuring that medical professionals have the best possible visuals to work with.
Security systems depend on accurate and distortion-free footage. Global shutters ensure that surveillance cameras capture clear and reliable images, even in high-speed scenarios like monitoring traffic or identifying suspects.
Global shutters are designed with specific sensor architectures that allow for simultaneous exposure of all pixels. This design is crucial for capturing distortion-free images.
The pixel architecture in global shutters includes features that prevent the smearing and artifacts common in rolling shutters. This architecture is what enables the global shutter to perform so effectively.
Efficiency is key in global shutter design. The ability to expose all pixels simultaneously without sacrificing sensitivity or image quality is a significant technical achievement.
While both shutters have their uses, the key difference lies in how they capture images. Rolling shutters expose pixels sequentially, leading to potential distortions, while global shutters expose all pixels at once, resulting in distortion-free images.
Rolling shutters are generally cheaper and easier to produce, making them common in consumer electronics. However, they fall short in high-speed and high-precision applications where global shutters shine despite their higher cost and complexity.
As technology advances, global shutters are gradually making their way into consumer electronics, including smartphones. This adoption promises to bring higher image quality and better performance to everyday devices.
Drones and action cameras benefit immensely from global shutters. Capturing high-speed action without distortion is crucial for these applications, making global shutters a valuable addition.
Global shutters represent a significant advancement in camera technology, offering unparalleled image quality and precision. From industrial applications to consumer electronics, their ability to eliminate distortion and capture fast-moving objects makes them invaluable. As technology continues to evolve, the future looks bright for global shutters, promising even more innovations and applications.
1. What is the main advantage of a global shutter?
The main advantage of a global shutter is its ability to capture the entire image frame simultaneously, eliminating distortions common in rolling shutters.
2. Can a global shutter eliminate all types of image distortion?
Yes, global shutters eliminate the distortions caused by the sequential line-by-line exposure of rolling shutters, resulting in clearer and more accurate images.
3. Are global shutters more expensive than rolling shutters?
Generally, yes. The complex design and manufacturing process make global shutters more expensive than rolling shutters.
4. How does a global shutter improve industrial imaging?
Global shutters provide distortion-free images crucial for high-speed industrial processes, ensuring accurate inspections and quality control.
5. What future advancements can we expect in global shutter technology?
Advancements in sensor technology and pixel architecture are expected to improve the efficiency and cost-effectiveness of global shutters, expanding their applications and adoption.
