2MP AR0230 Wide Dynamic USB2.0 Camera Module

Share

2MP AR0230 Wide Dynamic USB2.0 Camera Module with IR-CUT Switch suitable for Daytime & Night

product details
Model   No.HBVCAM-1828 V22
Model SizePCB:38mm   × 38mm ×24.75±0.5MM
Sensor AR0230
Resolution1920*1080
Optical Format1/2.7''   inch
Pixel Size3.0um*3.0um
Active pixel array1928(H)   x 1088(V) (16:9 mode)
Responsivity4.0V/lux-sec
SNR MAX 41   dB
Max Dynamic rangeUp   to 105 dB
Operating  temperature–30°C   to +85°C ambient
Object distance30-infinity
Interface5PIN   USB2.0
DFOV144degree
HFOV115degree
VFOV87degree
Operating systemFree   driver for  Windows 2000\ Windows   XP\Windows 7  /  Linux    and Android system with Standard UVC Protocol
Video FormatMJPG
Format output and FPS

1280*720(default)    30fps

640*480  30fps      1920*1080  30fps

800*600  30fps      1024*768    30fps

Video FormatYUY2
Format output and FPS

1280*720(default)    10fps

 640*480  25fps      1920*1080  5fps

 800*600  10fps      1024*768    10fps

Exposure
Automatic white balance
FocusFixed   Focus (lens is adjustable)
USB cable40CM   1M 2M 3M

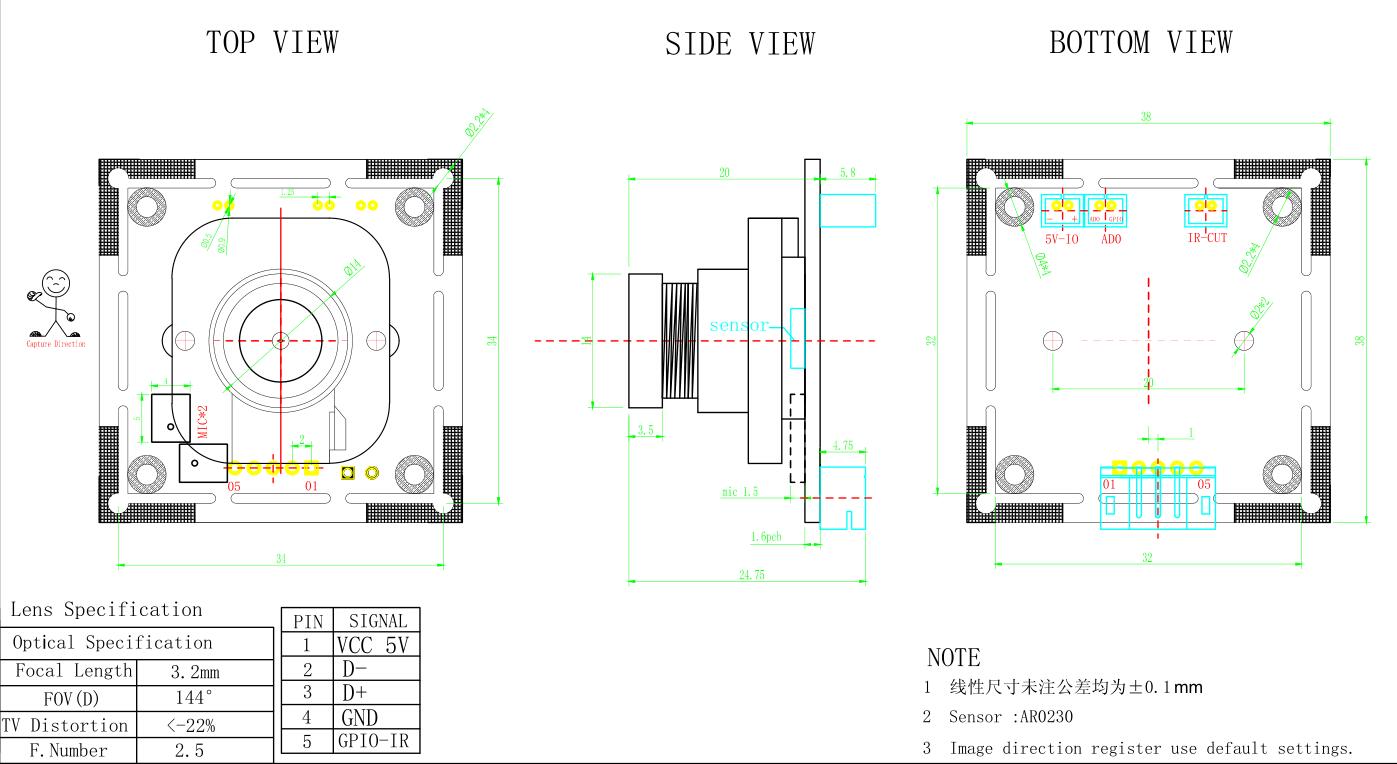

1828 drawing.jpg


Products show
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
  • 2MP AR0230 Wide Dynamic USB2.0 Camera Module
FAQ

   1. Is it can used at daytime and night?

       Yes, it is IR-Cut switch camera, it can automatically switch daytime &night, when it comes to night vision mode, the image is black and white.

   2. Is it can used outdoor equipment?

      Yes, it is 2MP wide dynamic HD camera module, When the sunsine is enough at Midday, the camera also work well.

   3. Do you have usb cable for the sample?

      Yes, we will supply usb cable to you for free.
